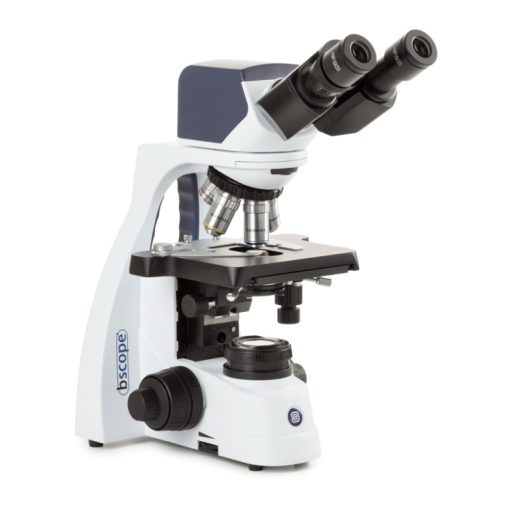

Head: binocular, tilted 30°, rotatable 360°, can be set to upper or lower position
Built-in digital USB camera
The bScope digital microscopes are equipped with a 5.0 MP, 1/2.5 inch CMOS, USB 2.0 camera, 24 bit colour depth, 7 fps image refresh at maximum resolution (2592 x 1944 pixels), 27 fps at 1280 x 960 pixel resolution. The dynamic range is 76 dB and the signal to noise ratio is 41 dB.
Included in the package: installation CD for ImageFocus Alpha image management software, USB 2.0 cable and 1 mm/100th of a micrometer for software calibration.
Software
The ImageFocus Alpha software allows saving images in .jpg, .tif, .bmp or .dicom format and videos in .avi format. Measurements and annotations can be made on live or recorded images. Compatible with Windows 7, 8 and 10, all 32bit/64bit configurations. Mac OS version also available.
- Eyepieces: wide field of view HWF 10x/20 mm
- Diopter adjustment: ±5D on the left eyepiece
- Eye relief adjustment: 48-76mm range
- Lens turret: five positions
- All lenses treated with antifungal agent
- Lenses do not contain lead
IS.1157-EPLi has infinity corrected E-Plan lenses:
- E-Plan IOS 4x/0.10, WD=18.9mm, cc=0.17
- E-Plan IOS 10x/0.25, WD=5.95mm, cc=0.17
- E-Plan IOS 40x/0.65 spring loaded, WD=0.78mm, cc=0.17
- E-Plan IOS 100x/1.25 spring loaded, oil immersion, WD=0.36mm, cc=0.17
For IS.1157-EPLPHi, E-Plan phase-contrast lenses corrected to infinity:
- E-Plan IOS PH10x/0.25, WD=5.95mm, cc=0.17
- E-Plan IOS PH20x/0.40, WD=2.61mm, cc=0.17
- E-Plan IOS PH 40x/0.65 spring, WD=0.78mm, cc=0.17
- E-Plan IOS PH100x/1.25 spring, oil immersion, WD=0.36mm, cc=0.17
For IS.1157-PLi, infinity corrected lenses:
- Plan IOS 4x/0.10, WD=21mm, cc=0.17
- Plan IOS 10x/0.25, WD=5.00mm, cc=0.17
- Plan IOS 40x/0.65 spring loaded, WD=0.66mm, cc=0.17
- Plan IOS 100x/1.25 spring loaded, oil immersion, WD=0.36mm, cc=0.17
For IS.1157-PLPHi, infinity corrected phase contrast lenses:
- Planachromat IOS PH10x/0.25, WD=5.00mm, cc=0.17
- Planachromat IOS PH20x/0.40, WD=8.80mm, cc=0.17
- Planachromat IOS PH40x/0.65 spring loaded, WD=0.66mm, cc=0.17
- Planachromat IOS PH100x/1.25 spring loaded, oil immersion, WD=0.36mm, cc=0.17
Table top: low positioned, can be moved in XY direction by right handed operator
Slide table size: 152/197 x 131 mm, can hold one sample
XY range of movement: 75×36 mm, vertical: 19 mm
Focusing system: coaxial coarse and fine adjustment with focus stop mechanism
Focusing system stepping accuracy: 1,11 µm, 200 µm / revolution
Condenser: centric, height adjustable Abbé condenser, N.A. 1.25, with iris diaphragm, filter holder
Illumination: 3W NeoLEDTM (6300K), Köhler system, with dimmer, built-in power supply (100-240V)
Wireless operation: 3xAA rechargeable batteries (batteries not included)
(CSS) Cable Storage System allows the user to place the power cable in the back of the instrument for easy storage
Accessories in the box: power cord, dust cover, head screwdriver, 5 ml of immersion oil, instruction manual
