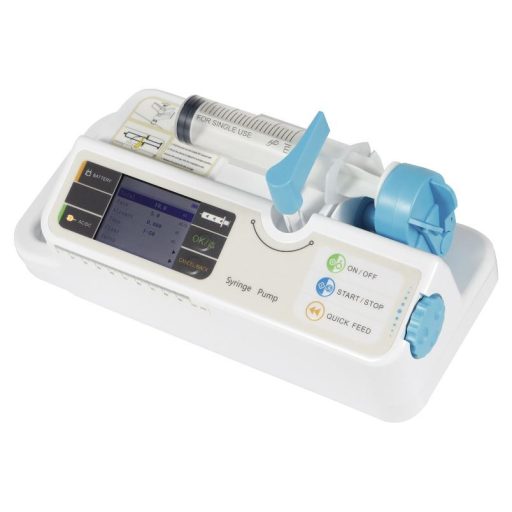

SP950 is a medical syringe pump that utilizes microcomputer system and microelectronic technology, showcasing advanced intelligence and safety features. Its LCD screen provides real-time display of various parameters, accompanied by a multifunctional alarm system that employs visual, auditory, and textual prompts. This pump offers user-friendly operation, reliable performance, high precision, and automatic syringe specification verification. As a result, it has gained extensive adoption in hospitals for clinical nursing, including critical care units such as ICU and CCU, as well as departments like neonatology, obstetrics and gynecology, pediatrics, internal medicine, surgery, operating rooms, and emergency rooms.
Features
- Infusion rate and total volume can be set by user.
- Alarms for infusion pipe occlusion, syringe fall-off, communication abnormal, low battery.
- Bright, alarm volume and range of pressure alarm are adjustable.
- Quick feed function, convenient for supplying medicine quickly and instantaneously.
- Enter KVO mode after infusion completed.
- The system will give prompt signal when there is no operation at power-on state.
- Built-in rechargeable battery provides such functions as auto-switch power supply and auto-charge.
- Display parameters with large screen, and give prompt information with visual, auditory and character signal, which is convenient for medical persons to operate.
- The device can equipped with disposable syringe (CNS), and accuracy can be ensured by adjusting parameters.
- CE, ISO13485 Certification
Performance
- Specification requirement for syringe: 10ml/20ml/30ml/50ml (CNS)
- Accumulated volume display: 0ml-999.9ml
- Accuracy: ±3%
Infusion rate:
- 10ml 0.1ml/h-100ml/h
- 20ml 0.1ml/h-200ml/h
- 30ml 0.1ml/h-300ml/h
- 50ml 0.1ml/h-500ml/h
Rate of quick feed:
- 10ml 100ml/h
- 20ml 200ml/h
- 30ml 300ml/h
- 50ml 500ml/h
Pressure range for occlusion alarm:
Three grades are adjustable:
- Low: 40KPa ± 16KPa
- Middle: 70KPa ± 30KPa
- High: 100KPa± 35KPa
- KVO rate: 0.1ml/h~5ml/h, adjustable
- Safety classification: Class equipment, internally powered type BF
- Alarm function: 1 At non-operated state 2 Near empty 3 Empty, enter KVO mode 4 Syringe fall-off 5 Occlusion 6 Pressure failure 7 Motor failure 8 Low battery 9 Communication abnormal
- power consumption: 20VA~30VA, the device can continuously work for at least two hours with the injection rate of 5ml/h or 500ml/h after fully charged.
- Power supply: AC100~240V 50/60Hz
- Battery: rechargeable lithium battery, 7.4V, 3500mAh
- Working environment: Temperature: +5~40; Atmospheric pressure: 860hPa~1060h; Relative humidity: 20%~90%; no strong vibration and no corrosive gas.
Storage environment:
- Temperature: -20~+55;
- Relative humidity: ≤90%, no condensation;
- No corrosive gas and well-ventilated
Accessories
- A bracket
- A power cord
- A user manual
- Two fuses
Physical characteristic
- Dimension: 310mm*140mm*135mm(L×W×H)
- Weight: 1.7kg
