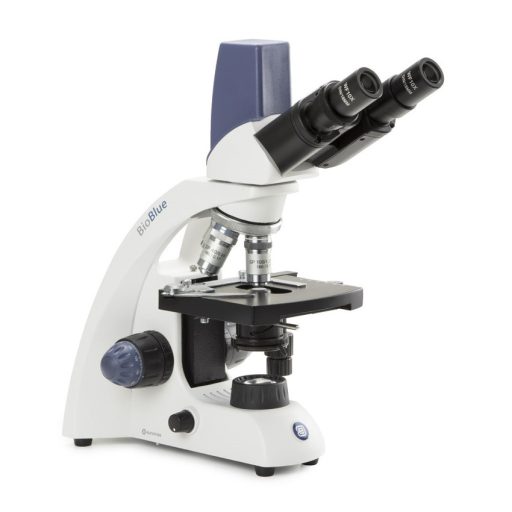

- Head: binocular, tilted 30º, rotatable 360º
- Built-in 3.2 MP CMOS USB-2 camera
- Eyepieces: WF10x/18mm
- Focal length adjustment: 48-75mm
- Diopter adjustment: +/-5D on the left eyepiece
- Revolver: 4 compartments
Lenses:
- Semi-Plan 4x/0.10
- Semi-Plan 10x/0.25
- Semi-Plan 40x/0.65, spring loaded,
- Semi-Plan 100x/1.25, spring-loaded, oil immersion
- Full magnification: 40x, 100x, 400x, 1000x
- Focus: coaxial fine and coarse adjustment
- Stage size: 130x130mm, X-Y movable
- Stage range of movement: 70×28mm
- Condenser: Abbé N.A. 1.25, with iris blend, filter holder, height adjustable
- Illumination: 1W NeoLED illumination with dimmer, rechargeable battery
- Accessories in the package: 5 ml immersion oil, dust cover, instruction manual
- Installation disc: Image Focus 4.0 image management software (with measurement function)
- Compatibility: with Windows 7, 8, 8.1, 10 32/64 bit operating systems
- Dimensions: height: 360mm x width: 155mm x depth: 230mm
- Weight: 4 Kg
Image Focus 4.0 camera software features:
- Saves images in selectable resolutions
- Image files supported: bmp, tif, jpeg, raw
- Video recording
- Setting options:
- File saving location
- Specify file sequence names
- White balance auto/manual adjustment
- Gain (digital gain) setting
- Adjust gamma, contrast and saturation
- Adjust colour temperature
- Noise filter function
- Digital image sharpening function
- Monochromatic fluorescence image colouring
- Saving parameters for multiple users
- Post-processing of images
- HDR function
- Measurement toolbar:
- Distance, perimeter, area, circle, irregular line
- Perpendicular adjustment, parallel adjustment
- Center circle
- Two- and three-point circle acquisition
- Measure angles, mark points
