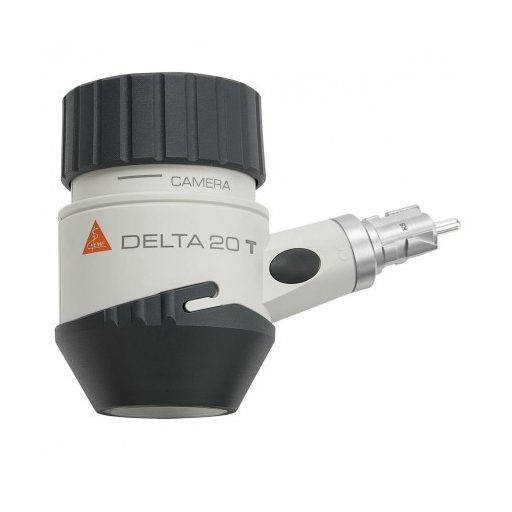

The Heine Delta 20T is a dermatoscope with precision optics, which can be toggled between polarised and non-polarised light
Diagnostic Flexibility with the Heine Delta 20T Dermatoscope
The HEINE Delta 20T is a high-quality dermatoscope with HQ LED illumination that can be used for contact dermoscopy with an immersion liquid (e.g. immersion oil) or for non-contact dermoscopy with polarised light. This makes the Delta 20T particularly flexible and offers the proper exam method for every lesion.
Built into the Heine Delta 20T is a precision lens in the shape of an achromatic optical system, which delivers razor sharp, high-resolution images with 10x to 16x magnification. This makes diagnosis extremely simple.
A special advantage is the LED illumination in Heine quality through with an absolutely natural colour resolution is displayed. This property is especially important when assessing the colouration of liver spots.
The Delta 20T can be combined with various batteries, rechargeable handles and the practical Heine charging station
The Delta 20T Toggle Function
The toggle function is one of the significant specialties offered by the Heine Delta 20T. With this function, one can switch back and forth between polarised and non-polarised light at the touch of a button.
For many other dermatoscopes, it is necessary to change the contact plate in order to view the skin lesions under different lighting conditions, which poorly compares to the Delta 20T due to the time delay.
By switching between polarised and non-polarised light, a sort of signal appears on certain structures that is also known as a "Blink Sign". This signal emerges because certain structures appear differently under various lighting conditions. Blood vessels and crystalline structures appear as white lines when changing from non-polarised to polarised light, while milia are easier to recognise under non-polarised light.
In the example (see the added picture), one can see the illumination of a basal cell carcinoma when using the toggle function.
The Heine Delta 20T as a hybrid dermatoscope is ideally suited for evaluating all types of skin changes.
The Contact Plate for Difficult Areas
A special contact plate is available as an optional accessory for the Heine Delta 20T, which makes this dermatoscope a specialty in the market. The contact plate only has a diameter of 8 mm, which makes it ideal for examing difficult to reach skin areas.
Because skin cancer not only develops on easily visible areas like the back, stomach or face, but also on wrinkles and spaces between the fingers and toes, it is very important to always thoroughly examine these areas during skin cancer screenings. Since an examination on such difficult to reach skin areas is not possible with a normal contact plate, Heine offers an extra small contact plate that makes possible professional evaluation of lesions on these areas.
Whether it involves the spaces between the fingers or toes, the area around the finger and toenails, wrinkles or intimate areas–with the small contact plate, skin changes can be easily examined on problematic areas over the entire body. As opposed to standard contact plates, the small contact plate is slightly protruded which makes it ideally designed for each exam situation.
Product Details
Instrument head for combination with a battery handle or rechargeable handle (this must be separately acquired)
Delivers high-quality images
Provides precise diagnostics
Easily changes between non-polarised and polarised light (toggle function)
Homogenous, bright light
True colour resolution
Light strength and focus (+/- 6 dpt) settable
Also suited for contact dermoscopy with immersion liquid
Delivery includes dermoscopy compendium
Contact plate with scale allows measurement of skin changes
Disinfectant tolerant (e.g. Bacillol plus)
Latex free, without phtalates
Technical Details
Combination device–usable with polarised light (non-contact) or with immersion liquid (contact dermoscopy)
Achromatic optical system
Can be combined with 2.5 V or 3.5 V handles
4 LEDs
16,000 Lux (with polarisation); 6,000 Lux (without polarisation)
Field of illumination diameter: 23 mm
10x-16x magnification
Colour temperature: 5,000 K
Colour rendering index (CRI): >80 (with maximum scale of 100)
LED lifespan: up to 50,000 hours
Effective heat management guarantees consistent quality and output
Combinable with various single-lens reflex cameras with optional adapter
5 year warranty
