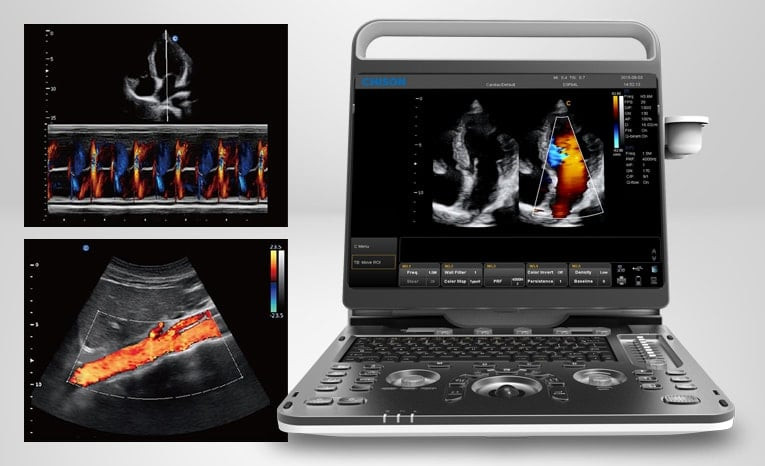

The ulta-portable and innovative EBit 60 Colour Doppler Ultrasound System from CHISON is perfect for demanding clinical environments. The ultrasound machine is not only equipped with a replaceable battery that allows a continuous working time of 120 minutes, but also uses cutting-edge image technologies such as FHI, Q-flow, Virtual HD, Q-beam and X-contrast. As a result, the ultrasound unit ensures optimal examination conditions in medical practices and clinics.
With its wide range of untrasound probes, the EBit 60 is perfect for use in internal medicine, cardiology, gynaecology, urology, orthopaedics, emergency medicine and paediatrics. Due to its compact dimensions and a low weight of 7.8 kg, the device can also be used flexibly. Both the alphanumeric keypad and the interactive backlit control panel ensure that the ultrasound system is particularly easy to operate. The high-resolution 15" LCD display also guarantees a clear presentation of the examined structures.
Product Details:
- Color Doppler system for demanding clinical examinations
- Portable thanks to its compact and ergonomic design
- Equipped with cutting-edge imaging technologies (FHI, Q-flow, Virtual HD, Q-beam, X-contrast)
- Clear 15" LCD display (0° - 30° tiltable)
- User-defined set-up of the keys possible
- Intuitive operation, easy handling
- Exchangeable and rechargeable battery that allows a continuous working time of 120 minutes
- Compatible with numerous probe types
- Ideal for internal medicine, cardiology, gynaecology, urology, orthopaedics, emergency medicine, radiology and paediatrics
- Equipped with built-in dual transducer ports
- Optionally available: ergonomic trolley with accessory box, printer socket & probe holders
- Manufacturer's warranty: 2 years on the ultrasound unit and 2D probes, 1 year on the battery and additional probes (V7-E, P6-E, L12-E, L7R-E)
Modes:
B Mode, B/M Mode, M Mode, 2B Mode, 4B Mode, 2D Steer (Option), CFM Mode, CPA Mode, DPD Mode, PW Mode, B/BC Mode, Triplex Mode, CW Mode, TDI (option), Color M Mode (option), Trapezoidal Mode, ECG (option), Super Needle (option)
Software Options: DICOM, Super Needle, CW, TDI, Color M, ECG, B/BC mode, 2D Steer, IMT
Technical Data:
- 2 probe slots
- With integrated loudspeakers

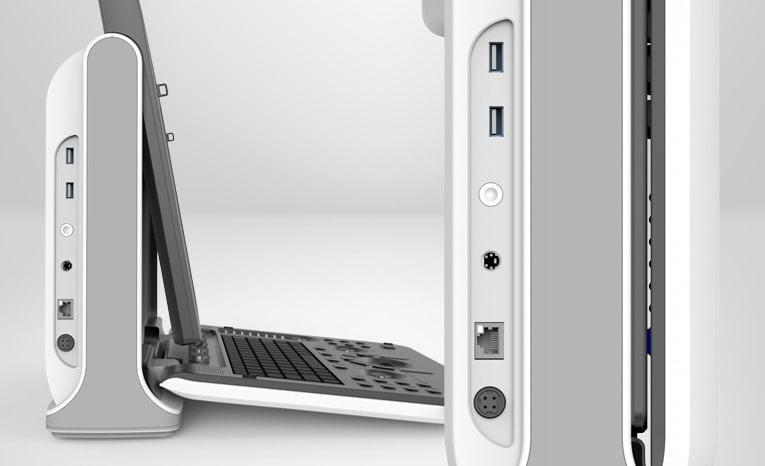

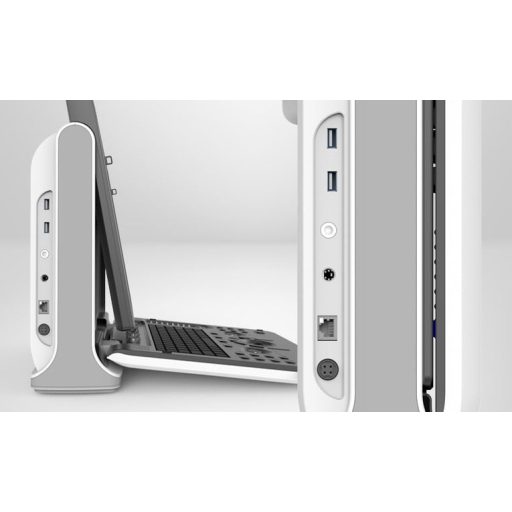

- Connections: 4 x USB, S-video, VGA, DVI, ECG, foot switch
- Extensive language selection
- Q-image and automatic image optimisation
- 8 TGC sliders
- Power supply voltage: AC 100 - 240V
- Power supply frequency: 50 - 60 Hz
- Power consumption: 150 VA
Display Modes:
- Quad/dual display (only for B)
- Duplex mode: B + CFM, B + CPA, B/M
- Triplex mode: B + CFM + PW, B + CPA + PW, B + DPD + PW
Delivery Contents:
- EBit 60 ultrasound system
- Convex probe C3-E (3.5 MHz)
- Linear probe L7-E (4.0 - 15.0 MHz)
- 500 GB hard disk
