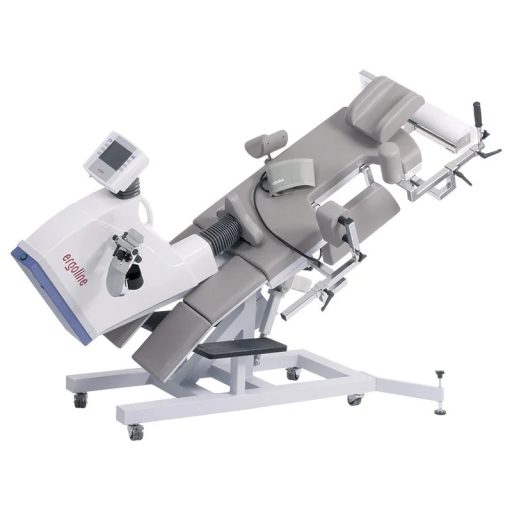

A comfortable motor control enables the exact positioning of the patient. The lying surface can be adjusted between 0° and 45° - tilting to the left side is also possible at the same angle.
The saddle can be infinitely adjusted so that the position of the upper body and legs in relation to the pedal crank is always optimal.
A fold-out padded element makes the areas of the body to be exposed to sound easily accessible. The special ergometer can also be equipped with removable leg rests on both sides, making it a fully-fledged bed for interim examinations and the ideal loading device for a cardiac catheter measuring station.
Convenient stand-alone operation with freely definable ergometry and training programs is also possible, as is universal connection to a wide range of ECG recorders or PC ECGs.
To optimally adapt to the respective practical conditions, the control unit can be removed from the device and positioned anywhere.
The integrable, automatic blood pressure measurement is carried out without interference via a special computer control and delivers precise measured values - even under high loads.
Patient safety is of great importance: wide footplates ensure easy ascent, variable support pads for the head, upper body and pelvis give the patient a secure hold in any lying position and the specially developed pedal shoes reliably prevent the legs from slipping away from the pedal cranks.
The stable mechanical construction guarantees maximum safety and trouble-free operation even under long-term use and high loads.
All ergoline ergometers are manufactured exclusively with high-quality components and of course meet all valid standards and requirements for medically used pedal crank ergometers.
Ergometer
- Load: 6-999 watts, independent of speed
- Speed range: 30-130 rpm
- Braking system: Computer controlled eddy current brake
- Reclining adjustment: Tilt and tilt 0-45° each, infinitely variable with motor control
- Seat height adjustment continuously with motor control
- Accuracy according to DIN VDE 0750-238
Ergometry programs
- 10 freely programmable ergometry programs
- 5 fixed level programs (WHO, Hollmann etc.)
- Manual load setting
Control unit
- Operation via membrane keyboard
- Display numerical values: load, speed, heart rate, ergometry time (optional: blood pressure)
Interfaces
- RS-232
- USB
- Optional: target load (analog), remote start
Miscellaneous
- Width of the lying surface: 50 cm
- Dimensions (L×W×H): approx. 240 × 90 × 180 cm
- Space requirement: max. approx. 260 × 120 cm
- Weight: approx. 140 kg
- Patient height: 120-210 cm
- Patient weight: max. 140 kg
