The MiniSpir New is a PC based spirometer for complete respiratory passage analysis with extended test interpretation. The MiniSpir New enables cost-effective COPD and asthma screening and is intuitive to use.
- Very user-friendly PC spirometer
- For a full respiratory passage analysis
- Real-time flow/volume and volume/time curve
- Estimated lung age
- Bronchial provocation test including the new Mannitol protocol with FEV1-effect curves
- Various animations to appeal to children
- Supplied with WinspiroPRO ® and high performance PC software

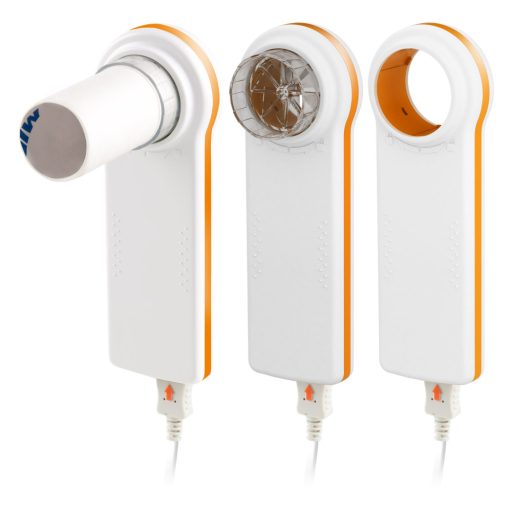

- Can be used with single-use or reusable turbines
- Supplied with nose clip, case and a single-use or reusable turbine
Technical Details:
- Size: 14.2 x 4.9 x 2.6 cm
- Weight: 65 g
- Power supply via USB port
- USB cable length: 2 m
- Measured parameters: FVC, FEV1, FEV1/FVC%, FEV3, FEV3/FVC%, FEV6, FEV1/FEV6%, PEF, FEF25%, FEF50%, FEF75%, FEF25-75%, FET, Vext, estimated lung age, FIVC, FIV1, FIV1/FIVC%, PIF, VC, IVC, IC, ERV, FEV1/VC%, VT, VE, Rf, ti, ti, ti / t-tot, VT / ti, MVV

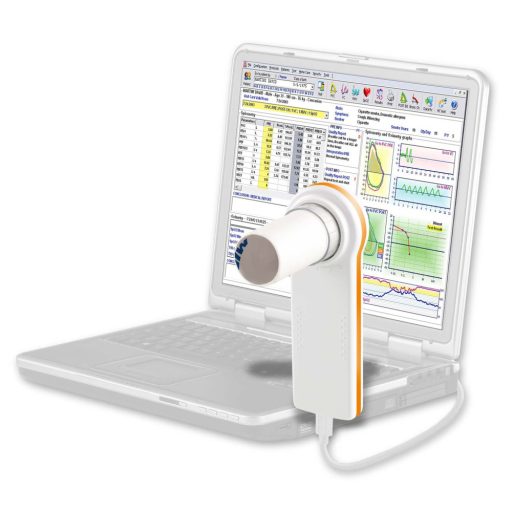

The WinspiroPRO® Software:
- Compatible with Windows XP, VISTA, 7, 8 and 10
- Results can be sent via email with just one click
- Curves and tests can be displayed in various formats, such as Word, Excel, Adobe Acrobat, HTML and text
- New, intuitive hyperlink spirometry curves
