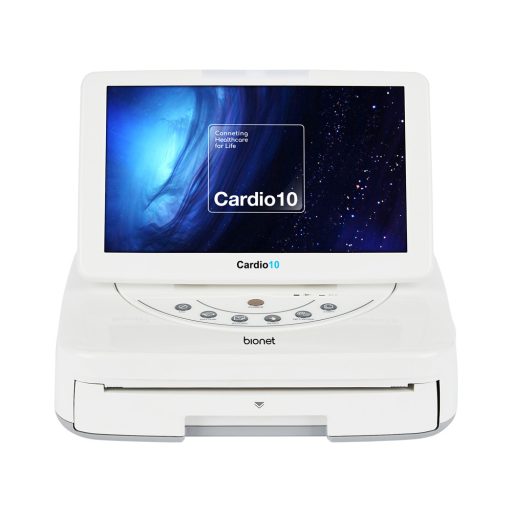

Cardio10 is a 12 CH, user-friendly resting ECG has a wide, rotating 10.1" screen that shows captures, analyzers, and transmits data as well as store data up to 500 cases.
Features:
- Simplifying workflow "AUTO" operation
- 30 min. full disclosure and Live acquisition comparison
- Enhanced sampling rate for data accuracy - With 8,000Hz per second sampling rate, it is designed to improve clinical decision for cardiology with accurate ECG interpretation algorithm and full storage of 500 ECG dataper 30 minutes.
- Advanced algorithm and Analysis - With long term recordings of 3, 5, 10 min, it features various analysis algorithms of ECG diagnosis.
- Patient Data Management in Mind
- BMS plus offers care givers the workflow flexibility for Data Preview - Device remote control - File conversion to PDF, XML, JPG, BMP, MFER, DICOM for data transfer through PACS
- Direct print-out, magnifying and comparing ECG trace, measuring ECG complex, adding comments
- Touch screen
- Display: 10.1" Color TFT wide display (1024 x 600), 12 channels preview ECG wave
- Line Power:
-Input: 100 ~ 240 VAC, 50/60Hz, 1.5~0.75A
-Output: 15VDC, 4.2A
- Battery type: Replaceable and rechargeable Lithium Ion, 10.8V, 6500mA
- Communication: LAN, WIFI, USB flash driver, USB barcode scanner
- Safety Conformity: Class I, Type CF applied parts: ECG electrodes, Type B applied parts: spirometer handle
Environmental Operation:
- Ambient Temperature: 10 to 40°C
- Relative Humidity: 30 to 85%
- Atmospheric Pressure: 70 to 106KPa
Dimensions:
- 300(W) x 299(H) x 123(D) mm (monitor tilt down)
- 300(W) x 299(H) x 237(D) mm (monitor tilt up)
- Approx.4kg (Main body)
Standard accessory: Patient cable (1EA), Limbs electrodes (1SET), Chest electrodes (1SET), ECG chart paper (1EA), Disposable mouthpiece (2 EA), Nose clip (1 EA), Handle dock (1EA), AC Power cord (1EA), Operation manual and ECG diagnosis guide (1EA)
