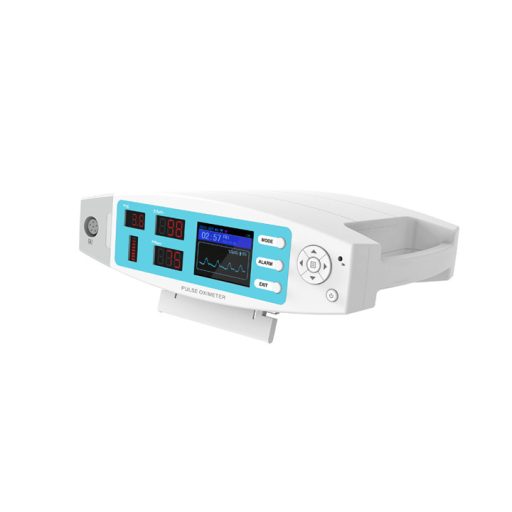

CMS70A Pulse Oximeter adopts Photoelectric Oxyhemoglobin Inspection Technology integrated with Capacity Pulse Scanning & Recording Technology, which can be used to measure human oxygen saturation and pulse rate through finger.
The device is suitable for use in family, hospital, oxygen bar, community healthcare and physical care in sports, etc. (It can be used before or after exercise, but not recommended to use during exercising).
Technical Specifications:
- Display Mode: TFT Screen and LED display
- Screen Resolution: 320 x 240
- SpO2 Measuring Range: 0%~100%(the resolution is 1%)
- Accuracy: 70%~100%: ± 2%, Below 70% unspecified
- PR Measuring Range: 30bpm~250bpm(the resolution is 1bpm)
- Accuracy: ± 2bpm or ± 2% (select larger)
- Measurement Performance in Weak Filling Condition: SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ± 4%, pulse rate error is ± 2 bpm or ± 2% (select larger).
- Resistance to surrounding light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ± 1%.
- Power Consumption: About 350mA
- Voltage: AC 100~240V, 50/60HZ
- Power Supply: Built-in recharge Li-Polymer
- Battery working hour: After the device built-in battry finished the charge, it's continuous working time is not less than 1 hour
- Safety Type: II device, BF Type
Features:
- Low power consumption
- SpO2 value display
- Pulse rate value display, bar graph display
- PI display
- Pulse waveform display
- Menu operation
- Screen brightness can be changed
- The display mode can be changed
- Pulse rate sound indication, it can be turned on or turned off
- With measured data overruns, limits and low-voltage alarm function, the upper/down alarm range can be adjustable
- Battery capacity indication
- Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage, and with alarm function
- Connected with an external oximeter probe
- Data storage function, and the storage data can be uploaded to a computer
- Real-time data can be transmitted to computers
Acessories:
- User manual
- Power wire
- Data line
- Oximeter probe (Adult)
- Disk (PC software)
