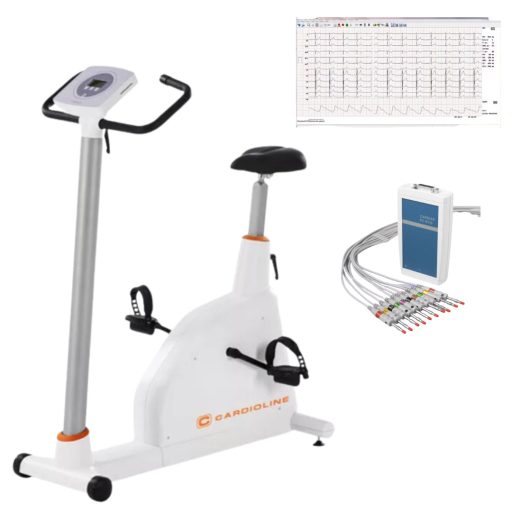

CARDIAX WiFi / USB ECG device with 4 adult rectal forceps and 6 adult chest electrodes
On the computer screen, the 12-lead ECG can be displayed in a wide range of lead combinations.
The CARDIAX is part of NASA's space programme, used on the International Space Station! Product awarded with the Hungarian Product Grand Prix.
CARDIAX 12 channel ECG - closed with private wireless communication, WIFI-VEL
High quality ECG:
- 4000 Hz sampling frequency
- Effective filters
- Automatic analysis (adult/child diagnosis)
- Comparison function
Compatible and networked:
- Integrates with most medical software
- Connects to other medical instruments
- Network database access
Easy to use:
- Print on A4 paper in any printer that comes with your computer
- Can be saved in PDf
- Online data sharing
CARDIAX ECG load module
The CARDIAX load laboratory fully automates the load tests The computer controls the load device (bicycle or treadmill) according to a preset load program. The load program can be used to define the duration of the load phases, the initial load, the increase of the load per phase and the conditions for interrupting the load. If the ergometer is also equipped with an automatic blood pressure monitor, the CARDIAX system measures the blood pressure and stores the measured values. The system continuously records a complete ECG during exercise. The evaluation is done on the fly, immediately, so that median curves and ST trends can be observed during the test. At the end of the test, the results are recorded in a final protocol. The results can also be viewed graphically. A graph plots heart rate, blood pressure and workload versus time. Other graphs show the variation of ST amplitudes and medians (ST trend and QRS trend).
Cardioline XR50+ cycle ergometer
Heavy-duty ergometer with dual display
Load resistance adjustable between 6-450W
Speed adjustment between 30-130 rpm
Maximum load capacity 160 kg
Display 68x34mm and 128x64mm
Computer-controlled electronic braking system, which is independent of the speed, so that the preset load is constantly maintained.
Communication: USB port, RS232 port, remote control
Size: 1000x440x1280 mm
Weight: 80 kg
