The phase contrast microscope of the OBL-15 series is especially suitable for very translucent, thin and low-contrast preparations such as living mammalian cells, bacteria and tissue. Direct imaging of cells with low inherent contrast is possible using the phase contrast technique - without staining the structures beforehand. Two objective lenses in Infinity E-Plan grind can focus sharply at infinity and are part of the high-quality equipment, as are the two phase contrast objectives, a continuously dimmable LED illumination and colored filters. For recordings and demonstrations in the medical and scientific fields, the trinocular microscope can be equipped with an optional camera via a corresponding C-mount adapter (not included).
Product details
- Trinocular transmitted light microscope with phase contrast technology
- Especially for very translucent, low-contrast specimens
- Applications in hematology, urology, gynecology, dermatology, pathology, microbiology and parasitology, immunology, sewage treatment plants, oncology, entomology, veterinary, water analysis
- Fixed-precentered and focusable ABBE condenser for brightfield and phase contrast
- Mechanical stage for 2 slides
- Coaxial coarse and fine drive on both sides with scale (2 μm)
- Incl. phase contrast condenser, PH slider, green filter, dust cover and eyecups
- Dimensions: W 395 mm x D 200 x H 380 mm
- Weight: 6.7 kg
Technical details
- Optical system: PH condenser Abbe (numerical aperture) 1.25 pre-centered, for brightfield and phase contrast
- Illumination: 3 W LED (transmitted light)

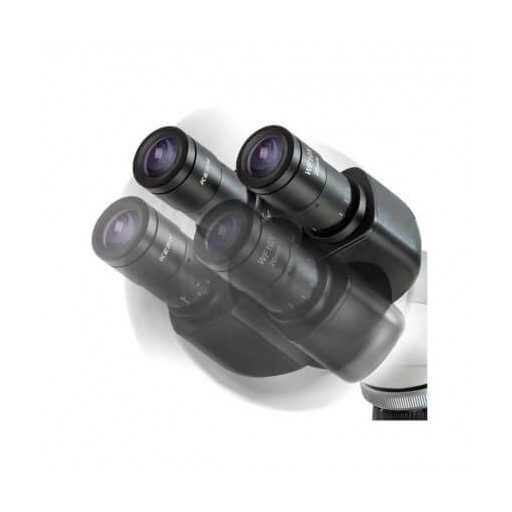

- Siedentopf: Butterfly 30° inclined, 360° rotatable
- Eyepieces: High widefield, 10x magnification, Ø 20 mm
- Dioptric compensation: one-sided
- Color filters: blue (built-in), green
Infinity E-Plan lenses (infinity corrected):
- 4x / 0.10 / working distance 12.1 mm
- 100x / 1.25 (oil) (spring loaded) / working distance 0.19 mm
Phase contrast units:
- Infinity PH plan objective 10 x and 40 x
- PH slider 10 x and 40 x
- Centering eyepiece
Scope of delivery

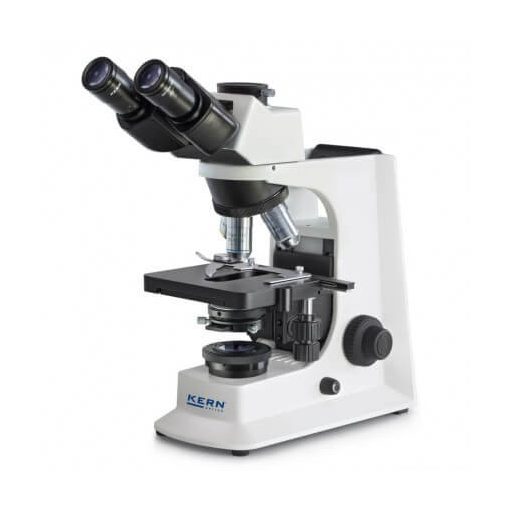

- 1 KERN OBL 156 phase contrast microscope trinocular
- 1 power supply unit
- 2 eyecups
- 1 dust cover

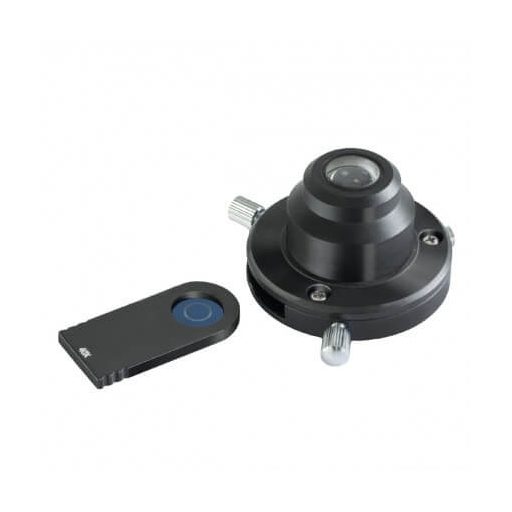

- 1 phase contrast condenser
- 1 PH slider
- 1 instruction manual
