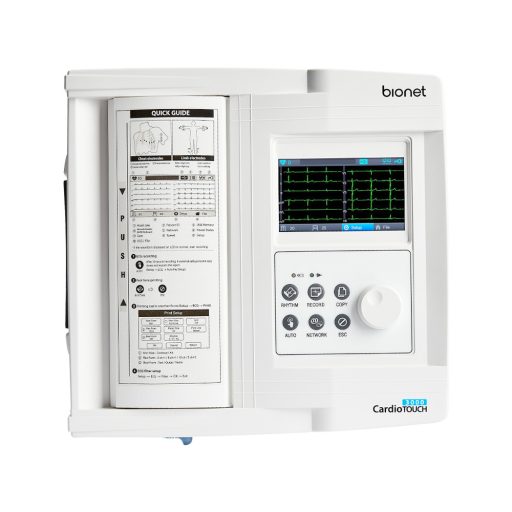

CardioTouch 3000 is a user-friendly resting ECG that captures, stores, analyzes, and transmits by simplifying workflow.
Features:
- Simplifying workflow with "AUTO" operation
- Easy ECG file data conversion
- ECG leads: Simultaneous 12 Leads Resting ECG
- Enhanced sampling rate for data accuracy - With 8,000Hz per second sampling rate, it is designed to improve clinical decision for cardiology with accurate ECG interpretation algorithm
- BMS Plus Patient data management in mind
- Bettery type: Replaceable and rechargeable, Lithium ion, 11,1V, 2600mA
- Communication: LAN, WIFI(option), USB flash driver, USB barcode scanner
- Dimensions: 300(W) x 290(H) x 97.5(H)mm, Approx. 3.0kg (main body)
Display:
- 480 x 272 Pixel Resolution, 4.3" Color TFT Wide display
- 12 Channels Preview, ID, HR, gain, speed, power status
BMS plus offers care givers the workflow flexibility for:
- Data Preview
- Device remote control
- File conversion to PDF, XML, JPG, BMP, MFER, DICOM for data transfer through PACS
- Direct print-out, magnifying and comparing ECG trace, measuring ECG complex, adding comments
Filters:
- AC (50/60Hz, -20dB or better),
- Muscle (25~35Hz, -3dB or better)
- Base Line Drift (0.05, 0.1, 0.2Hz, -3dB or better)
- Low Pass Filter (off, 40Hz, 100Hz, 150Hz)
Environmental Operation:
- Ambient Temperature: 10 to 40°C
- Relative Humidity: 30 to 85%
- Atmospheric Pressure: 70 to 106KPa
Standard Accessory: Patient cable(1 EA), Limbs electrodes(1 SET), Chest electrodes(1 SET), ECG paper(1 EA), Power cord(1 EA)
