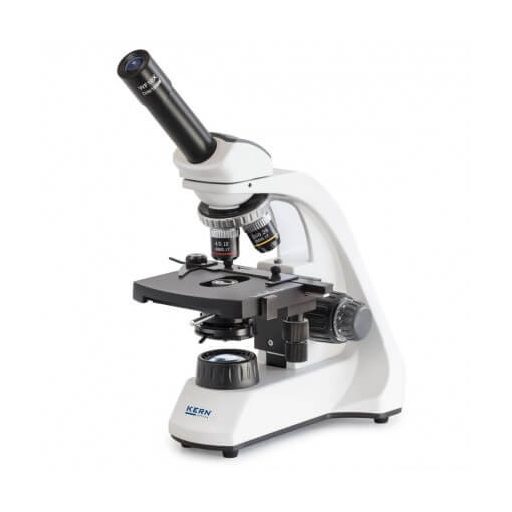

The OBT 103 transmitted light microscope from KERN is a school microscope characterized by clear controls and robustness. It is suitable for thin, high-contrast, less demanding preparations, such as translucent plant tissue, stained cells and parasites. The monocular tube for single-eye viewing is fully rotatable and tilted to 45°. The power supply is via cable or battery operation, so that the OBT 103 can also be used as a mobile instrument.
Product details
- Transmitted light microscope for high-contrast specimens
- Monocular design for school and training
- Fixed stage for 1 slide
- Coaxial coarse and fine drive on both sides with scale (2 μm)
- Battery operation possible (3 x 1.5 V AA batteries required)
- Incl. dust cover
- Dimensions: approx. W 195 × D 147 × H 325 mm
- Weight: 2.5 kg
Technical Details
- Objective lenses: DIN achromatic (Finity optics)
- Optical system: Single condenser, numerical aperture 0.65
- Illumination: 1 W LED dimmable
- Eyepieces: Wide field, 10x magnification, Ø 18 mm
Objective lenses:
- 4 x / 0.10 / working distance 27 mm
- 10 x / 0.25 / working distance 7 mm
- 40 x / 0.65 (spring loaded) / working distance 0.6 mm
Scope of delivery
- 1 KERN OBT 103 transmitted light microscope
- 1 dust cover
- 1 power cord
