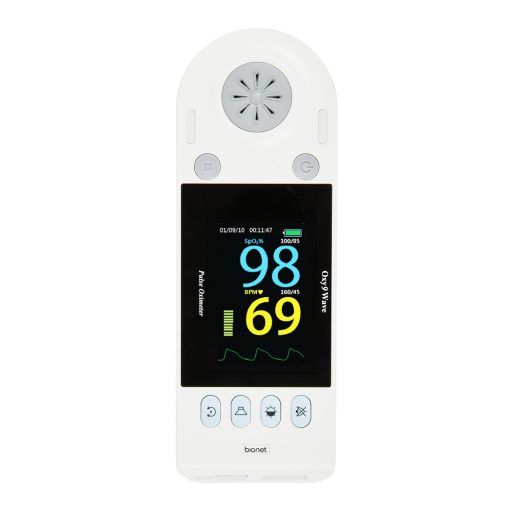

Oxy9Wave is a portable color display pulse oximeter. With It's simple and fast acquisition, It was developed with quality and convenience in mind.
Features:
- Simple, Fast acquisition
- 3.5″ Color LCD for clear view
- Large memory: up to 30 days in 10 secs
- Nellcor compatibility
- Li-ion rechargeable battery allows cordless use for up to 15 hrs
- Perfusion index indication
- User-Convenience
- Vertical & horizontal display of measurement value
- Intuitive operation
- SpO2, BPM, Pulse parameter display
Specification:
- Dimensions: 75 x 210 x 45 mm
- Weight: Approx. 0.3Kg
- Power: AC 100-240V (50/60Hz), Adapter 5V, 2.0 A
- Power consumption: 24VA (max)
- Display: 3.5” Color TFT-LCD screen
- Resolution: 320 X 480 pixels
- Displayed Data: SpO₂, Pulse rate, Perfusion index, Level Bar, Pulse rate Wave, Time and Date, Alarm Volume, Battery Status, Brightness
- LED indicators: Sensor Separation, Alarm Silence, Charging Status, Power Connection
- Parameters: SpO2, Pulse rate, PI (Perfusion Index)
Interfaces:
- DC input connector : 5V, 2.0A
- USB digital output for transferring data
Battery: Rechargeable Li-ion battery (5,500mAh, 3.65V)
- Charging time: 6.5 hours
- Operating time: Up to 15 hours
Data Storage: SpO2, Pulse rate (30 days at 10 second intervals)
Temperature:
- Operation: 5 ~ +40 °C
- Storage: –20 ~ +70 °C
Humidity:
- Operation: 30% ~ 85%,
- Storage: 5% ~ 95% (Package )
Altitude:
- Operation: 525 ~ 795 mmHg (70 ~ 106 kPa)
- Storage: 375 ~ 795 mmHg (50 ~ 106 kPa)
Saturation range: 40 to 100%
Saturation accuracy:
- 70 to 100% ±2 digits
- 0 to 69% unspecified
Pulse rate range: 30 to 250 bpm
Pulse rate accuracy: ±2 bpm
