- Central zoom objective
- The EduBlue LCD ED.3000 has a single optical zoom objective.
- Zoom value: 1-4x
- Working distance: 91 mm.
- Up to 10x digital zoom available in software
Tripod

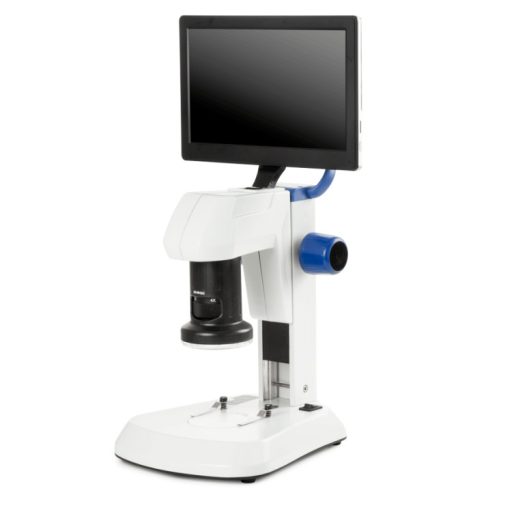

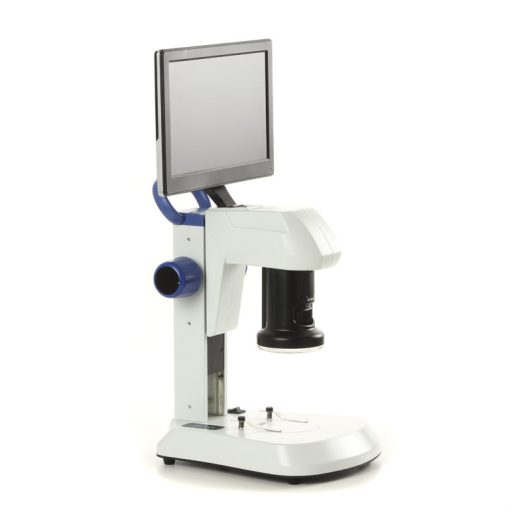

The zoom system with attached LCD screen and LED ring light source is mounted on a tripod with a handle on a 180 x 230 mm metal base.
Dimensions: 425/475 mm high, 180mm wide, 230mm deep
Weight: 2.3Kg
Illumination
Two types of illumination are available;
- Top: 21 LED ring lighting (5500 K) with knob-adjustable dimmer
- 7 LED lighting (5785 K) built into the base, with knob-adjustable dimmer
Built-in camera
Built-in 2 Megapixel high-speed CMOS camera with attached 9 inch screen. A 16 GB SD memory card is included for recording images and video.
The user can save images to the SD card using the photo button on the left side of the LCD display. Images are saved in .jpg format and videos in .avi format.
Built-in image management software
The on-screen built-in software can be controlled using the supplied computer mouse and has functions such as image capture, video capture, automatic white balance adjustment, automatic exposure adjustment, file manager, recordable grid lines and additional camera settings such as exposure time, gain, saturation, contrast, sharpness and HDR.
The package includes
- 16 GB SD card,
- Black/white desktop insert,
- Transparent glass slide
- Two external 12V / 3.3 A power supply
