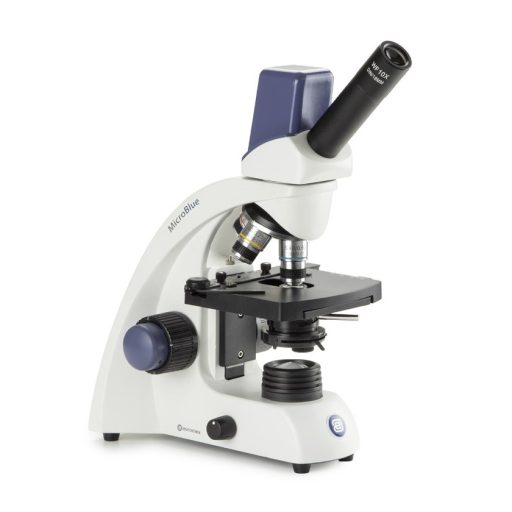

- Head: monocular, 45º tilted, 360º rotatable
- Built-in 3.1 Mpixel USB-2 camera
- Eyepiece: WF10x/18mm
- Revolver: 4 slots
Lenses:
- Achromat 4x/0.10
- Achromat 10x/0.25
- Achromat 40x/0.65, spring loaded,
- Achromat 100x/1.25, spring loaded, oil immersion
- Full magnification: 40x, 100x, 400x, 1000x
- Focus: coaxial fine and coarse adjustment
- Stage size: 115x100mm, X,Y movable
- Stage range of movement: 55×20mm
- Condenser: Abbé N.A. 1.25, with iris blend, filter holder, height adjustment
- Illumination: 1W NeoLED illumination with dimmer, rechargeable battery
- Accessories in the package: 5 ml immersion oil, dust cover, instruction manual
- Installation disc: Image Focus 4.0 image management software (with measurement function)
- Compatibility: with Windows 7, 8, 8.1, 10 32/64 bit operating systems
Image Focus 4.0 camera software features:
- Save images in selectable resolutions
- Supported image files: bmp, tif, jpeg,raw
- Video recording
- Setting options:
- File saving location
- Specify file sequence names
- White balance auto/manual adjustment
- Gain (digital gain) setting
- Adjust gamma, contrast and saturation
- Adjust colour temperature
- Noise filter function
- Digital image sharpening function
- Colouring of monochromatic fluorescent images
- Saving parameters for multiple users
- Post-processing of images
- HDR function
- Measurement toolbar:
- Distance, perimeter, area, circle, irregular line
- Perpendicular adjustment, parallel adjustment
- Center circle
- Two- and three-point circle acquisition
- Measure angles, mark points
- Inserting a text box
