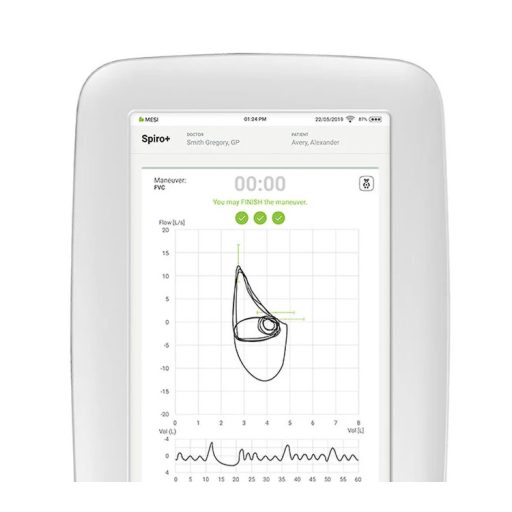

The pneumotachograph automatically selects and evaluates the best breath with the help of BestBreath™ detection. The tablet's display not only shows an animated flow-volume curve in real time, but also the temperature, humidity and air pressure.
The MESI mTablet SPIRO has an integrated self-calibration feature that ensures precise measurement results at all times. With the help of MESI mRECORDS, different measurements can be compared directly on the screen and thus the patient's course of disease can be evaluated.
Maximum hygiene is ensured by the separately available accessories in the form of disposable mouthpieces and disposable filters, which effectively prevent the transmission of infection from one patient to the next.
With the help of different modules and expansion packages, the MESI mTablet SPIRO can be individually expanded to include various diagnostic options, such as ABI measurement, ECG, SpO2 or blood pressure measurement.
Product Details:
MESI mTablet SPIRO

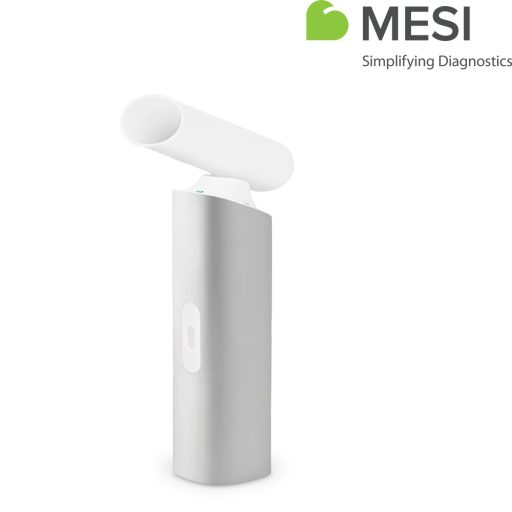

Pneumotachograph
Integrated self-calibration
Precise measurement results
Automatic selection of the best breath (BestBreath Detection)
Real-time display of temperature, humidity and air pressure
Warning messages in case of malfunctions or incorrectly performed tests (coughing, dropping the mouthpiece, etc.)
Primary spirometry is included as standard in the package
Quick spirometry and advanced spirometry are available as separate, chargeable app packages
Clear and intuitive overview of measured values
Detailed report with the option to switch between charts and values
Option to compare different measurements on one screen (with MESI mRECORDS)
Wireless module for maximum flexibility
Also suitable for mobile use
Individually expandable with various diagnostic modules and extension packages
Hygienic disposable mouthpieces and disposable filters are available for the mTablet SPIRO
Technical Details:
With high-performance lithium-polymer battery
Approx. 150 examinations or 4 hours of continuous use with one battery charge (module)
Interfaces: DICOM, HL7, XML, GDT, JSON
Protection class: IP30
Display resolution: 1280 x 00 px IPS
Internal tablet memory: 8 GB
Connectivity: Wi-Fi, Bluetooth
Equipped with a mono speaker and a 5 MP camera
Charger dimensions and weight: 40 x 20 x 3.8 cm, 675 g
Module dimensions and weight: 4 x 4 x 1.4 cm, 220 g
Complies with EN 60601-1, EN 60601-1-2 and EN ISO 26782
