Product features:
- Dimensions: 225 mm x 135 mm x 45 mm
- Weight: 292 g
- Power supply: rechargeable Li-Ion battery
- 5 inch full HD colour TFT LCD display with scratch resistant surface, 1 280 x 720 pixels
- Touch screen, easy to use
- Rotary knob for easy one-hand operation
- 16 GB internal memory
- 3.5 hours of operation in video mode
- Bayonet connection for attachable optical modules for quick and easy lens replacement
- Picture and video function
- Focus settings: automatic (otoscope/general lens), manual (all lenses)

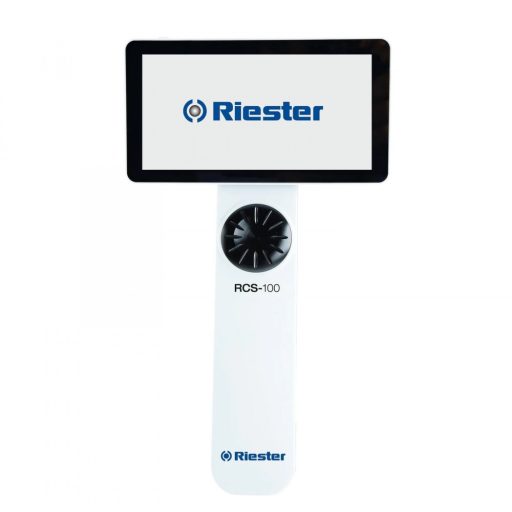

- RCS-100 user interface operation in different languages: English, German, French, Spanish, Italian, Russian, Mandarin, Arabic)
- New patients can be added through the user interface, information is saved in the image and video file name
- Network adapter with country specific connector (EU, USA, UK, Australian)
- Charging time: 3 hours
- Image quality:
- 8 MPixel CMOS for high resolution and scalable images
- Image format: JPEG
- Video format: H.264
- Resolution: Full HD True 3264 x 2448 pixels
- Interface:
- Micro USB 2.0, cable length at least 180cm
- UVC function (activated in the settings via the user interface) allows live image to be displayed in parallel on the second screen
- Optional WiFi SD card (16 GB)
- otoscope lens:
- better view of the ear canal
- Visible magnification through the display: 6x
- 12 mm Ø field of view at a distance of 25 mm from the object under examination (with 4 mm ear cone)
- 9 mm Ø field of view at 15 mm from the object (with 4 mm ear cone)
- 8 mm Ø field of view at 10 mm from the test object (with 4 mm ear cone)
- Disposable ear canals and reusable ear spectrum mm: 2, 3, 4, 5
- Light source: white LED, visible
- LED colour temperature: 4000K
- Brightness range: 8-25 mm
- Resolution: 8 MP CMOS
- Connection for pneumatic test available (compatible with existing Riester connectors)
- Dimensions: 73.5 mm x 40 mm x 40 mm
- Weight: 96 g
- Light source: white LED, visible
- LED colour temperature: 5500K
- Focal length mm: 30-4000 mm
- Resolution: 8 MP CMOS
- Display magnification for objects at 30 mm: 1-4 times
- Field of view: 78 °
- Optical magnification: 2x
- Digital magnification: 4x
- Dimensions: 60.5 mm x 60.5 mm x 19 mm
- Weight: 66.4 g
- Equipped with dermoscope lens:
- accurate identification and measurement of skin lesions, e.g. moles
- no need to use dermatoscopy oil (immersion)
- Light source: white LED, visible
- LED colour temperature: 4000K
- Field of view: Ø 30 mm
- Resolution: 8 MP CMOS
- with movable digital ruler on the display
- Optical magnification: twice (with lens attachment)
- Digital magnification: 4 times (additional)
- Displayable magnification: 2-8 times
- Dimensions: 62.1 mm x 62.1 mm x 36 mm
- Weight: 108.5 g
