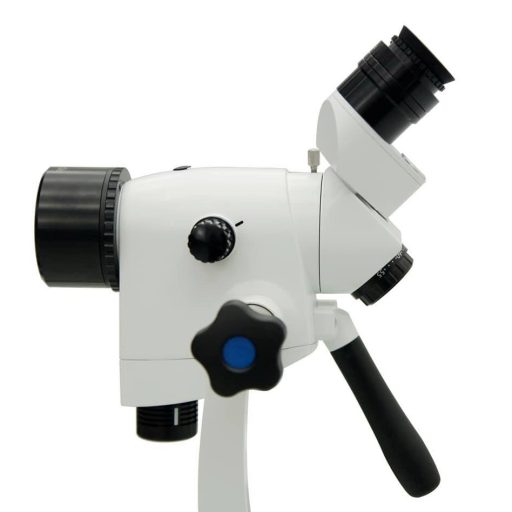

Head 45° tilted binocular tube, f = 170mm (also available with 90° straight head on request)
Eye relief adjustment: 55-75 mm
Dioptric correction: +/-7 D on both eyepieces
Working distance: 300mm, but also available with VarioDist lens adjustable between 250-400mm
Eyepieces: WF12.5x/17.7mm (optionally available with 10x/18mm or 16x eyepieces)
Magnification: 5 steps: 0.4x, 0.6x, 1x, 1.6x, 2.5x
Switchable green filter
Illumination: high brightness 10W direct LED illumination (4500K) with dimmer
Brightness 25.000 lux at 300mm working distance
Illuminated area diameter: 95mm

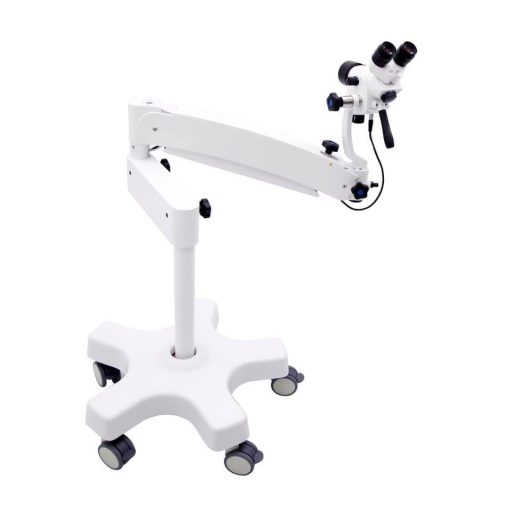

Base: 540 mm diameter, 5 branches, each roller with brakes
Weight of the instrument: 35Kg
Fixed pivot points
Maximum extension from the vertical rod: 970 mm
Vertical travel range: +/-300 mm
Head tilt range: +/-18°
Optionally available with light splitter and C-axis adapter for external analogue and digital cameras
Accessories included: dust cover, power supply, assembly instructions
3 years premium warranty!
