Alpha YDJ-2 G20 colposcope

Name: Alpha YDJ-2 G20 colposcope
Brand: Winterthur Medical AG
SKU: WINTER570292
Price: 10899.97 USD
Availability: InStock

Article No.:

WINTER570292

Best choice

5 years warranty

Free delivery

In stock

Winterthur Medical webshop warehouse - W00

In stock

Zoom zoom magnification
Built-in, switchable green filter
200mm rod extension adapter
Easily movable arm system
LED light source for natural colours
Optical output for C-coil cameras

Manufacturer:

Winterthur Medical AG

Further data

I don´t want extra services.

Product education (online) 0 $

Gross (27% VAT)

10 899.97 $

Net

8 582.65 $

Bonus point : 109 $

Details

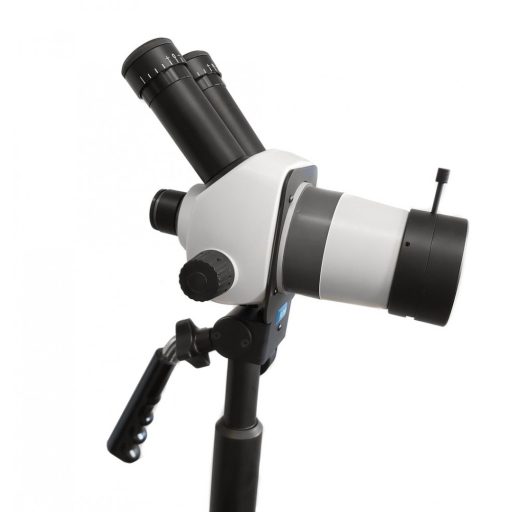

Features of the rolling stand version of the colposcope with trinocular zoom head

Head trinocular, tilted at 45°
Head rotation: 310°
Eye relief adjustment: 45-75 mm
Diopter correction: +/-5 D on both eyepieces
Working distance: 230 mm
Eyepieces: WF10x/20 mm
Field of view: 55-16 mm
Total magnification: 5x-22.5x
Switchable green filter
Illumination: high brightness 2 x 2 W PowerLED with dimmer
Base: 460 x 460 mm with brakable castors
Weight of the instrument: 30 Kg
460 m x 460 m - 30 kg
Maximum extension from the vertical rod: 800 mm
Vertical adjustment range of gas spring arm: +/-150 mm
Vertical adjustment range of the lever system on the rod: 400 mm
Built-in C-frame adapter for digital cameras
Accessories included: dust cover, power supply, assembly instructions
3 years premium warranty!
