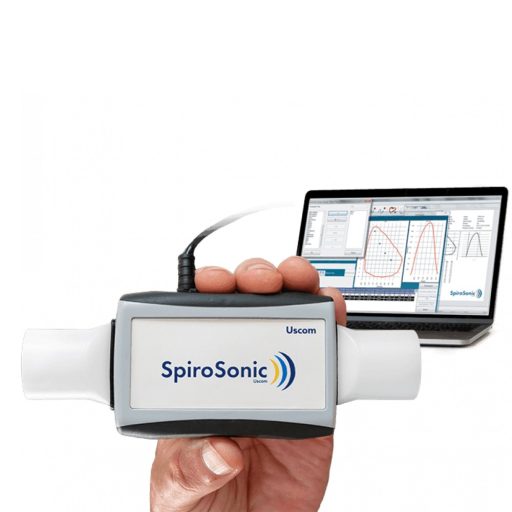

SpiroSonic FLO digital ultrasonic spirometer with USB.
The SpiroSonic Flo uses high accuracy and multi-path ultrasound for diagnosis and monitoring of lung function, designed for screening COPD and asthma.
User-friendly digital respiratory function device that provides research-quality spirometry at an affordable price.
Based on ultrasonic flow measurement and ultrasonic spirometry, each product is the result of years of research, technological development and innovation.
Complete solution for PC-based ultrasonic spirometry. Ultrasonic spirometry partnered with SpiroReporter software for a complete PC solution.
Accurate – PureFlow digital ultrasonic technology for improved accuracy
Easy to use – Convenient operation with Uscom’s SpiroReporter PC software
Easy to disinfect – No moving parts, single continuous flow tube
High-fidelity USB spirometer
SpiroSonic FLO is a high fidelity ultrasonic spirometer for pulmonary function assessment.
Coupled with the SpiroReporter software, SpiroSonic FLO is a powerful tool for screening COPD and monitoring asthma and other chronic pulmonary diseases.
Based on half-duplex single path digital ultrasonic flow measurement, SpiroSonic FLO is the result of years of research, technological development and innovation.
SPIROREPORTER PC SOFTWARE
Full-featured spirometry platform
The SpiroSonic FLO directly couples with the PC based proprietary SpiroReporter software. SpiroReporter is an all-inclusive spirometry software solution that provides archiving, analysis, trend analysis, reporting, and much more.
LESS COST PER MEASURE
Automatic calibration, simple disinfection
Designed for immediate use and simple operation, SpiroSonic FLO automatically calibrates itself before each measurement.
The device consists of no moving parts and a continuous flow tube, making disinfection very effective and easy.
SpiroSonic FLO is manufactured with high quality, easy to disinfect, durable materials, no moving parts and no proprietary disposables.
FOR YOUNG AND OLD
Intuitive and effective
SpiroSonic FLO’s extremely low flow resistance makes it suitable for diagnosing children, elderly and sick patients.
SpiroReporter’s interactive patient instructions and immediate feedback helps the patient and the practitioner to optimize the spirometry maneuver, leading to easier measurements and better results.
- Communication: Connection to PC via USB
- USB connector type: Standard USB 2.0 Type A
- Dimensions of the device: 28x65x95 mm
- Dimensions of the flow tube: Ø30×165 mm
- Weight: 146 g
- Level of electrical protection: BF
- Protection against water ingress: IP44
- Operating and storage conditions Temperature: 10 – 40°C
- Relative humidity: 5 – 95% without condensation
- Dimensions of the packaging: 180*110*135 mm
- Weight of packaging: 320 g
- Flow/volume measurement system: PureFlow technology
- Measurement principle: PureFlow ultrasonic multiple-path
- Maximum volume: ± 20 L
- Flow range: ± 14 L/s
- Volume accuracy: ± 2.5% or 50 mL whichever is greater
- Flow accuracy: ± 2.5 % or 50 mL/s whichever is greater
- Sample rate: 100 Hz
- Expiratory impedance at 14 L/s flow: < 0,15 kPa/L/s
- Extremely cost-effective design, robust, durable mechanics
- Long-term monitoring for home use
- Pharmaceutical testing subsystem
- Internal surface of flow tube can be continuously disinfected with cold disinfectant liquid
FVC: ELA, EOTV05, EOTV1, EV, FEF25, FEF50, FEF75, FET, FEV05, FEV05/FVC, FEV075, FEV075/FVC, FEV1, FEV1/FEV6, FEV1/FIVC, FEV1/FVC, FEV3, FEV3/FVC, FEV6, FIF25, FIF50, FIF75, FIV1, FIV1/FIVC, FIVC, FVC, MMEF2550, MMEF2575, PEF, PEFT, PIF, Zero Time
VC: ERV, IC, IRV, IVC, RR, TE, TE/TI, TI, TV, TV/TI,VC, VE
MVV: MVV
