Standalone wireless ultrasonic spirometer with touchscreen, for pulmonologists and general practitioners
Internal Database – SMART’s memory allows storing hundreds of patient records and thousands of measurements.
Spoken instructions – Interactive guidance for better quality measuements – available in 12 languages.
Direct printing – Connect to printers via USB and print reports directly from the device.
High-fidelity self-contained spirometer

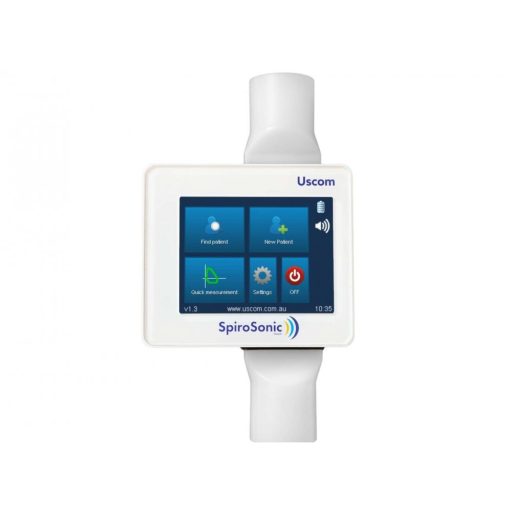

SpiroSonic SMART is a standalone high fidelity digital ultrasonic spirometer with intuitive touchscreen controls.
SpiroSonic SMART is a powerful tool for screening COPD and monitoring asthma and other chronic pulmonary diseases.
Based on multi-path digital ultrasonic flow monitoring, SpiroSonic SMART is the result of years of research, technological development and innovation.
INTEGRATED SOLUTION OUT OF THE BOX
Full-featured spirometry station on the go
Just turn it on and start measuring! No need to install additional software, no device pairing – SpiroSonic SMART is an all-in-one solution for patient management and advanced spirometry measurements.
SpiroSonic smart comes with integrated tutorials, so you can use it instantly after unboxing. It measures and evaluates over 35 parameters – rivaling complex PC based systems. The reports can be directly printed from the device by using a compatible wireless* or USB printer.
LESS COST PER MEASURE
Interactive tutorials with multi language support
SpiroSonic SMART features voice commands guiding the patient and the operator through the measurement session. It helps to maximize successful measurements and provides instant feedback without having to look at the screen during sessions – saving you time and helping operators to achieve accurate results on the first try.
SpiroSonic SMART supports over 12 languages – this includes the intuitive user interface and the fully voiced interactive voice commands.
FOR YOUNG AND OLD
Intuitive and effective
SpiroSonic SMART extremely low flow resistance makes it suitable for diagnosing children, elderly and sick patients.
SpiroReporter’s Interactive patient instructions and immediate feedback helps the patient and the practitioner to optimise the spirometry manoeuvre, leading to easier measurements and better results.
LESS COST PER MEASURE
Automatic calibration, simple disinfection
Designed for immediate use and simple operation, SpiroSonic SMART automatically calibrates itself before each measurement.
The device consists of no moving parts and a continuous flow tube, making disinfection very effective and easy.
SpiroSonic SMART is manufactured with high quality, easy to disinfect, durable materials, no moving parts and no proprietary disposables.
- Memory capacity: The instrument is able to store more than 4 000 patients and/or measurements.
(The exact number depends on the measurement type.)
- Language support: English, Simplified Chinese, Traditional Chinese, French, Spanish, Italian, German, Austrian, Czech, Korean, Hungarian, Croatian
- Display: Quarter VGA (320×240 pixels), 262k colors with touchscreen
- Printing: The instrument can print to any HP deskjet and officejet printers (via USB interface) that support the PCL3 language
- Communication port/interface: Connection to PC via USB or Bluetooth
- USB connector type: Standard 5-pin mini B type
- Dimensions of the device: 37x81x92 mm
- Dimensions of the flow tube: ø30×165 mm
- Weight: 210 grams
- Battery: Internal 3,7 V Li-Ion battery (rechargeable via 5V 500 mA mini USB charger)
- Electrical protection: Internal battery power supply
- Level of electrical protection: BF
- Protection against water ingress: IP32
- Operating and storage conditions - Temperature: 10 – 40°C
- Relative humidity: 5 – 95% without condensation
- Dimensions of the packaging: 180*110*135 mm
- Weight of packaging: 442 g
- Flow/volume measurement system: PureFlow technology
- Measurement principle: PureFlow ultrasonic multiple-path
- Maximum volume: ± 20 L
- Flow range: ± 14 L/s
- Volume accuracy: ± 2.5% or 50 mL whichever is greater
- Flow accuracy: ± 2.5% or 50 mL/s whichever is greater
- Sample rate: 100 Hz
- Expiratory impedance at 14 L/s flow: < 0,15 kPa/L/s
Contents of the package:
- USB cable
- 5V USB charger
- USB cable VV1 USB cable with power supply
- Textile bag for transport
- Disinfectant plugs
- Calibration certificate
- SpiroReporter Spirometry PC software
- User manual
FVC - FVC, PEF, ELA, FEV1, FEV3, FEV6, FEV1/FVC, FEF25, FEF50, FEF75, FEF2550, FEF2575, FEF5075, FET, PEFT, FIVC, FIV1, FIV1/FIVC, FIT, EV, ET, PIF
VC - VC, IVC, IC, ERV, IRV, TV, TI, TE, VE, RR, TV/TI, TE/TI
MVV - MVV
