Uscom SpiroSonic MOBILE allows you to perform measurements anywhere, anytime with the help of a mobile device. PureFlow advanced ultrasonic digital technology’s extremely low resistance to flow makes it suitable for children, elderly and sick patients with asthma, COPD and O.L.D.
PORTABLE DIGITAL ULTRASONIC SPIROMETER
SpiroSonic MOBILE
Portable pulmonary function diagnostics device with Bluetooth Classic communication interface, built-in battery & mobile app.
Wireless spirometer – Connects to mobile devices via Bluetooth Classic.
Accurate – Multi-path digital ultrasonic technology for improved outcomes
Easy to disinfect – No moving parts, single continuous flow tube

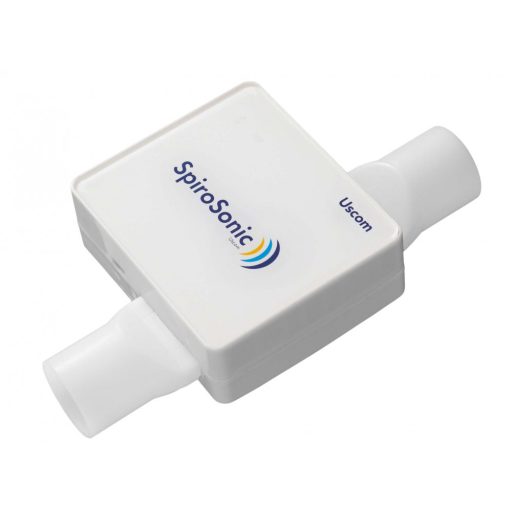

SpiroSonic MOBILE is a wireless, portable pulmonary function diagnostics device with built-in battery.
High-fidelity wireless spirometer
SpiroSonic MOBILE is a high fidelity digital ultrasonic spirometer for pulmonary function diagnostic and monitoring designed for screening COPD and asthma.
Based on multi-path digital ultrasonic flow monitoring, SpiroSonic FLO is the result of years of research, technological development and innovation.
IN THE OFFICE OR ON THE GO

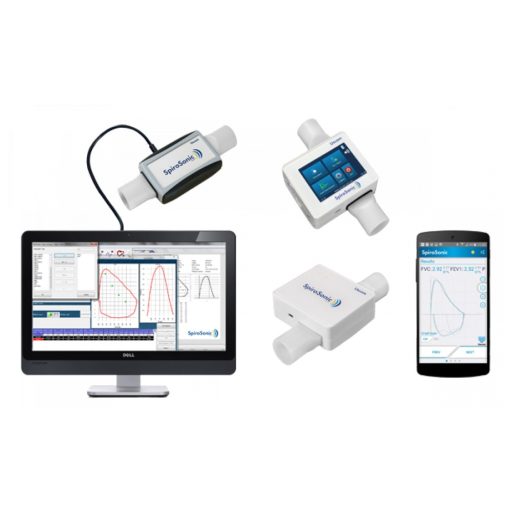

Mobile or PC? We’ve got you covered!
With the SpiroSonic mobile app, you can be ready to measure in seconds! SpiroSonic MOBILE pairs with the the SpiroSonic Android app that allows you to measure, evaluate, analyze and quickly print spirometry reports on the go.
The SpiroSonic MOBILE also directly couples with the PC based proprietary SpiroReporter via Bluetooth, enabling archiving, analysis, trend analysis and reporting in the office.
LESS COST PER MEASURE
Automatic calibration, simple disinfection
Designed for immediate use and simple operation, SpiroSonic FLO automatically calibrates itself before each measurement.
The device consists of no moving parts and a continuous flow tube, making disinfection very effective and easy.
SpiroSonic MOBILE is manufactured with high quality, easy to disinfect, durable materials, no moving parts and no proprietary disposables.
FOR YOUNG AND OLD
Intuitive and effective
SpiroSonic FLO’s extremely low flow resistance makes it suitable for diagnosing children, elderly and sick patients.
SpiroReporter’s Interactive patient instructions and immediate feedback helps the patient and the practitioner to optimise the spirometry manoeuvre, leading to easier measurements and better results.
- Communication: Connection to PC via USB or Bluetooth
- USB connector type: Standard 5-pin mini B type
- Dimensions of the device: 37x81x92 mm
- Dimensions of the flow tube: d30×165 mm
- Weight: 178 grams
- Battery: Internal 3,7 V Li-Ion battery (rechargeable via 5V 500 mA mini USB charger)
- Electrical protection: Internal battery power supply
- Level of electrical protection: BF
- Protection against water ingress: IP32
- Operating and storage conditions: Temperature: 10 – 40°C
- Relative humidity: 5 – 95% without condensation
- Dimensions of the packaging: 180*110*135 mm
- Weight of packaging: 412 g
Sensor:
- Flow/volume measurement system: PureFlow technology
- Measurement principle: PureFlow ultrasonic multiple-path
- Maximum volume: ± 20 L
- Flow range: ± 14 L/s
- Volume accuracy: ± 2.5% or 50 mL whichever is greater
- Flow accuracy: ± 2.5% or 50 mL/s whichever is greater
- Sample rate: 100 Hz
- Expiratory impedance at 14 L/s flow: < 0,15 kPa/L/s
Package Contents:
- SpiroSonic MOBILE ultrasonic spirometer
- SpiroReporter spirometry PC software CD with User Manual
- 5V USB charger
- USB cable
- Sample Bacterial filter
- Textile bag for carrying
- Plugs for disinfection
- Calibration Certificate
FVC: ELA, EOTV05, EOTV1, EV, FEF25, FEF50, FEF75, FET, FEV05, FEV05/FVC, FEV075, FEV075/FVC, FEV1, FEV1/FEV6, FEV1/FIVC, FEV1/FVC, FEV3, FEV3/FVC, FEV6, FIF25, FIF50, FIF75, FIV1, FIV1/FIVC, FIVC, FVC, MMEF2550, MMEF2575, PEF, PEFT, PIF, Zero Time
VC:ERV, IC, IRV, IVC, RR, TE, TE/TI, TI, TV, TV/TI,VC, VE
MVV: MVV
