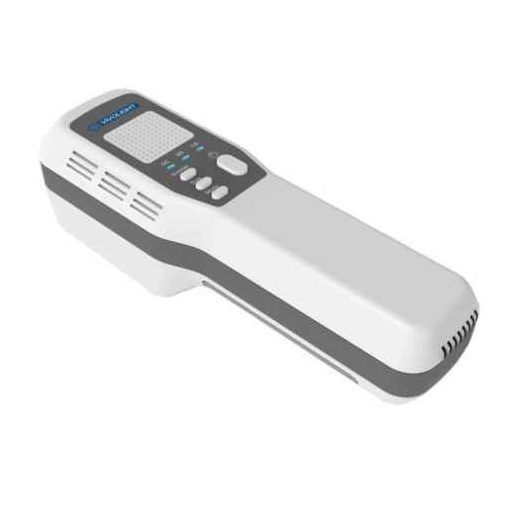

The VIVO500S mobile infrared vein finder allows veins to be quickly and precisely displayed up to a depth of 8mm. The network of veins is directly projected onto the patient's skin using a DLP projector. This makes venipuncture easy.
- Model: VIVO500S

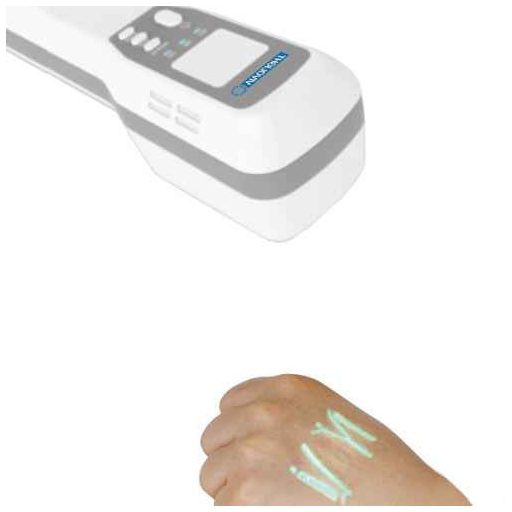

- Projects the vein network on the skin surface
- Facilitates venipuncture and permits an assessment of subcutaneous bleeding, varicosities and spider veins
- Ideal for mobile use (in hospital or on house calls)
- Displays veins down to a depth of 8mm
- With li-ion rechargeable battery
- Very easy to use
- Suitable for use with adults, children, babies and newborns
- Adjustable brightness
- Two different projection field sizes (for adults or children)
- 4 display options: Normal mode, Green light mode, Recognition depth mode, Reverse mode
Technical Details:
- Weight (device): 500 g
- Dimensions (device): 22 x 6.5 x 6.5 cm
- Standby time: ≤ 100 minutes
- Infrared wave length: 940 nm and 850 nm
- Maximum examination depth: 8 mm
- Charging time: 8 hours
Display Modes Overview:
- Normal mode: veins are displayed in dark colours, background in light
- Reverse mode: reversed display: veins are light, background dark
- Green mode: veins are displayed in light green and background is faded out
- Recognition depth mode: veins are displayed in dark colours, and the background in light.
In addition, the vein depth is projected on the skin using a green scale.
- 1 bar: 0-2mm deep,
- 2 bars: 2-5mm deep,
- 3 bars: deeper than 5mm
