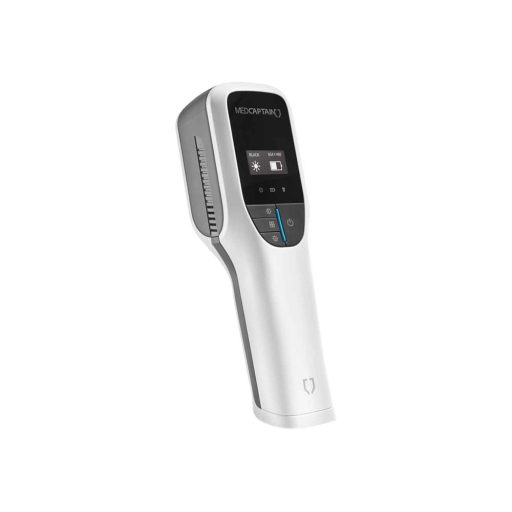

VeinNavi® NAVI-60 vein finder

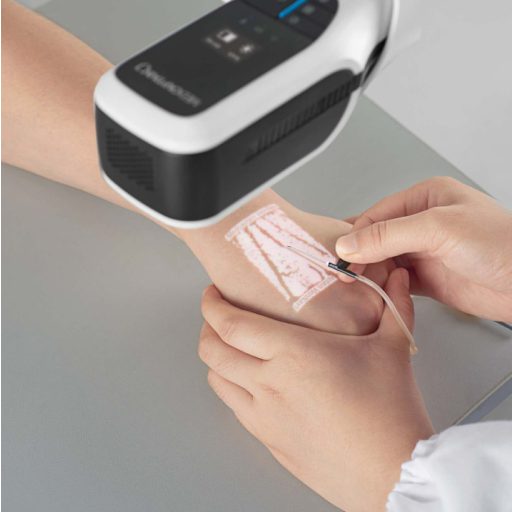

The VeinNavi® vein locator NAVI-60 from Medcaptain is used for the gentle and precise puncture of veins and displays them in real time on the surface of the skin. This way, the localization of veins at different depths is possible, so that malpunctures are effectively avoided. This reduces the risk of hardening and scarring of veins.

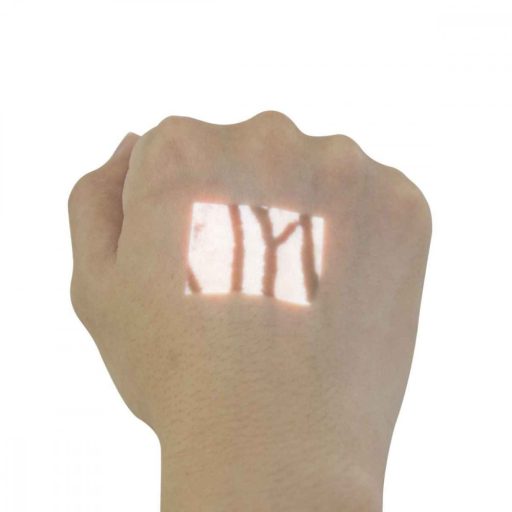

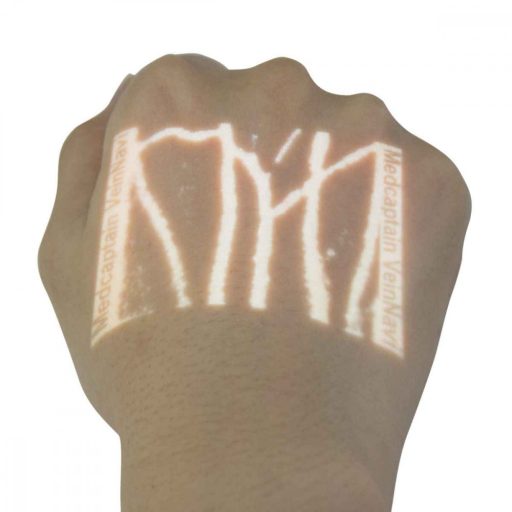

• Real-time contactless imaging of veins on the skin surface

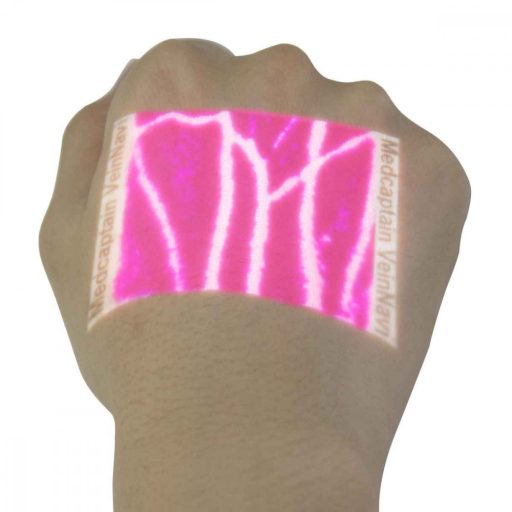

• Five different colours adjustable (blue, green, pink, red/orange)

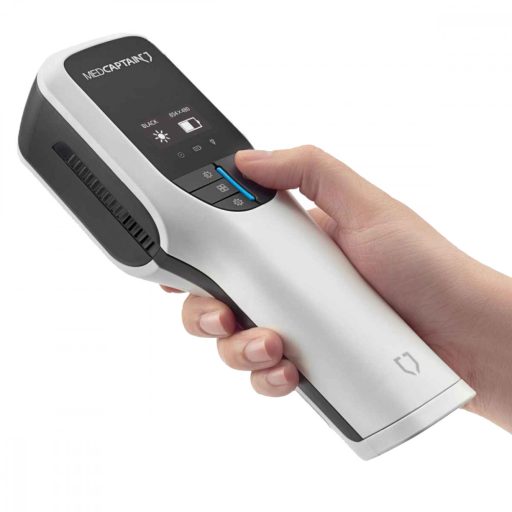

• Display with battery status, brightness and mode indicator
• Brightness adjustable in 4 levels
• With depth detection
• For more precise and gentle venipuncture
• Rechargeable battery lasts for approx. 2.5 hours of continuous operation
• Charging cable and power supply included
• Battery fully charged after approx. 4 hours
• Reduces the risk of hardening and scarring of the vein
• Can also be used in the context of sclerotherapy and cauterisation therapy.
• Ideal for paediatrics, oncology, vascular medicine, cardiology, etc.
• Delivery contents: 1 vein finder

Technical Details

• Resolution: 854 x 480 px
• Light source: 10 - 25 lumen, near-infrared light
• Dimensions: 224 x 68 x 64 mm (W x H x D)
• Weight: 500 g
• Built-in lithium battery 7.4V, 3000mAh
• Infrared wavelengths: 850nm, double light source
• Ideal focus position: 210 ± 30mm
