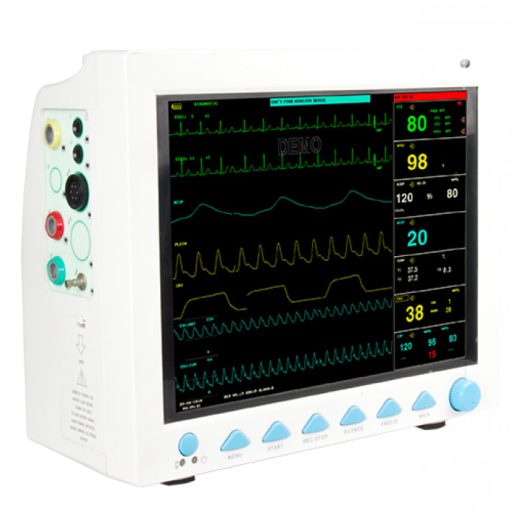

Contec CMS 8000 patient monitor

- Patient monitor with high-resolution 12.1" colour TFT screen
- Lightweight, compact, portable device
- NIBP method oscillometric, modes: manual, auto, continuous
- Auto measurement time adjustable
- Measuring range: 10-270 mm Hg
- ECG: 3 leads I; II; III; avR; avL; avF; V
- Heart rate: adult: 15-300 bpm; child/newborn: 15-300 bpm
- ECG waveform: 2 channels
- Accuracy: ±1 bpm, ±1%
- S-T segment tracking
- Measurement duration: -0.2 mv ~2.0mv
- Alarm: audible, visual, alarm event review
- ECG, APO2, NIBP, RESP,2-TEMP, PR
- Built-in rechargeable lithium battery
- ECG waveforms: 7-lead display on screen
- 72-hour graphical and tabular trends for all parameters
- 72 alarm event recall for each parameter
- 32-second full-disclosure waveform recall
- 500 NIBP measurement data can be stored and viewed
- Date and waveform colour can be set
- Arithmia analysis and S-T segment analysis
- Suitable for adult, child and neonatal monitoring
- SPO2 measurement range 0-100%, accuracy: 70-100%, ±2%
- Pulse measurement range: 20-254bpm, accuracy: ±3bpm
- Respiration: method RA-LL impedance, range: adult: 0-120rpm; child: 0-150rpm, apnea alarm
- Temperature range: 0-50 degrees C
- 50-50°C - 50-50°C
- Option: 2- IBP, IBP, ETCO2, thermal printer

Measured parameters:

- ECG: Heart rate (HR); 2-channel ECG waveform; Arrhythmia and ST segment analysis.
- SpO2: Oxygen saturation; SpO2 Pletismo gram.
- TEMP: Channel-1 Temperature (T1), Channel-2 Temperature (T2), Temperature difference between the two channels
- RESP: Respiratory Rate (RR); Respiratory Waveform.
- NIBP: Systolic (NS), Diastolic pressure (ND), Mean pressure (NM )
