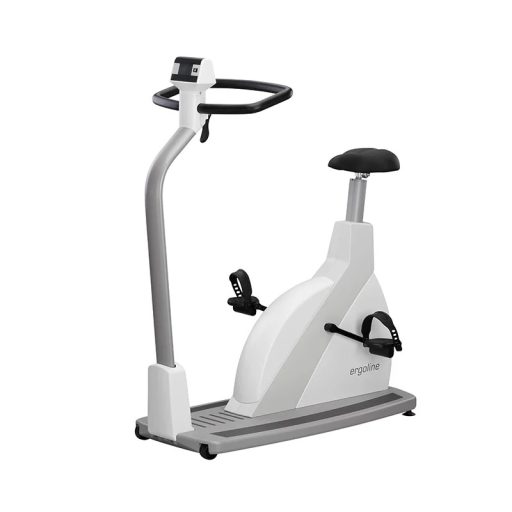

The ergoline ergoselect 5 can be used flexibly as a modular premium ergometer and is almost silent thanks to its special 2-stage belt technology.
The ergoselect 5 is characterized by a solid, extra wide aluminum base plate, which ensures its high stability. A low step-through as well as the adjustment of the steering angle and seat height enable maximum patient comfort.
- Extra wide platform for particularly secure standing
- Low entry height and easy access
- Computer controlled eddy current brake
- Handlebar tilts 360°, lockable
- No overtravel of the pedals
- Load: 6-999 watts, independent of speed
- Speed range: 30-130 rpm
- Display: load, speed, time, blood pressure, heart rate
- Interfaces: RS-232, USB (Bluetooth and WLAN optional)
- Patient height: approx. 120-210 cm
- Patient weight: max. 160 kg (200 kg with seat height adjustment with gas pressure or motorized)
- Dimensions (L×W×H): approx. 105 × 49 × 127 cm (height 114–140 cm with adjustable handlebar height)
- Weight: approx. 66 kg
Options
Selectable control unit:
- M: Control via PC/ECG
- P: Membrane keyboard, control via PC/ECG, 10 ergometry programs and manual operation
- T: like P, but: 7″ color touchscreen, additional training/test programs and expansion options
Seat height adjustment to choose from:
- Mechanical (patients up to 160 kg)
- Gas pressure (patients up to 200 kg)
- Motorized (patients up to 200 kg)
Optional motorized handlebar height adjustment
Particularly suitable for performance diagnostics, rehabilitation and other special applications.
