High quality binocular microscope
4x lens revolver, 1.25 Abbe condenser
Single diopter focus
Height adjustable 1.2 ABBE condenser
Coarse, fine and coaxial focus
Ideal for haematology and urology
For examination of urine sediments and blood cells
Suitable for native blood testing in dark field

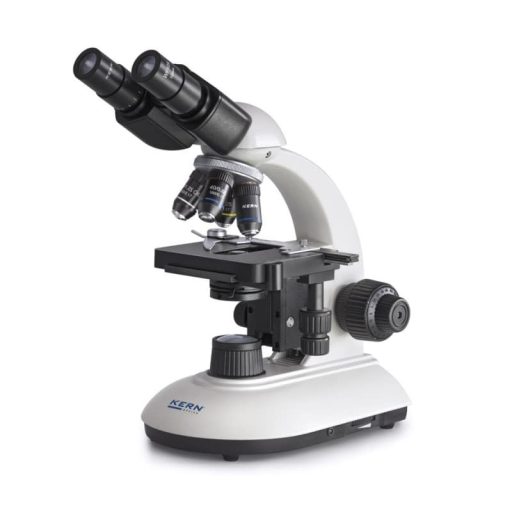

The Kern binocular microscope is a high quality binocular microscope with a 4-slot lens rotator equipped with a long-life, dimmable 3 W LED illumination. The height of the fully equipped cross stage can be adjusted on both sides using the coarse and fine focus knob. The pattern can be slid using the coaxial knob.
The four different lenses allow a wide range of applications. The microscope can be used, for example, in haematology and urology to examine blood and urine sediment. It can also be used to examine bacteria and cytopathogenic virus types. The microscope can even be used for dark-field examination of native blood.
Product details:
Kern microscope
Binocular tube
Rotating unit: lens: 4-fold lens
Siedentopf head with 30° tilt angle, 360° rotation
One-sided dioptric focus
Acromatic lenses: 4x / 10x / 40x / 100x
Eyepiece: HWF 10x / ∅ 18 mm
3W LED illumination (transcentric), infinitely dimmable
Guarantees optimal illumination of the sample
Suitable for dark field diagnosis
Ergonomic design for fatigue-free work
Easy operation
Height-adjustable 1,25 ABBE condenser with aperture shutter
Fully equipped cross table
Adjustable height with coarse and fine focus knobs on both sides
Supplied with anti-contamination cover, eye cup and multi-lingual instruction manual
