D-Heart Portable ECG Device

The D-Heart portable ECG device is a medically tested 8- and 12-lead ECG device for smartphones and tablets and enables autonomous ECG recording at any time. Thanks to the telemedicine option, the ECG recordings are streamed in real time via Bluetooth to the free app and can thus be sent to the doctor.

The D-Heart can be used to monitor heart health and track unclear symptoms by providing clinically reliable, hospital-quality results. The smartphone or tablet camera can mimic the image on the screen and the smartphone camera algorithm will show you where to place the electrodes.

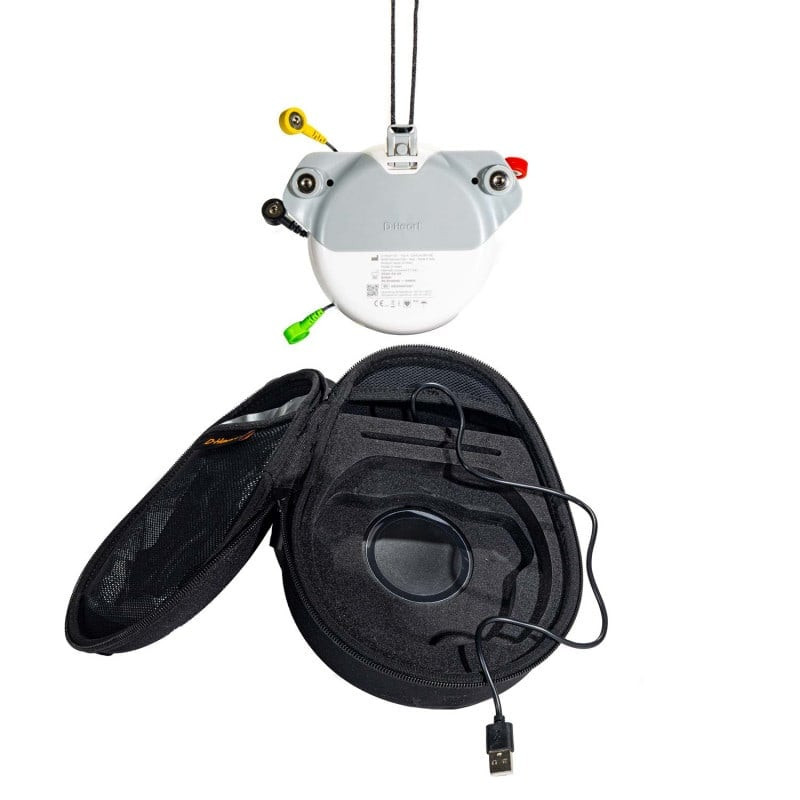

The powerful lithium battery has an operating time of 24 hours in continuous operation and recharges automatically while the unit is in the storage box.

Product Details

• Enables autonomous ECG recording at any time
• For tracking or monitoring heart health and symptoms
• Hospital-quality recordings
• Provides the most reliable clinical results
• Precise morphological evaluation (DI, DII, DIII, aVR, aVR, V2, V5)
• Medically tested, CE class IIA
• ISO certified according to 13485 and 9001
• Particularly easy operation
• Cable rolling mechanism of the electrode cables

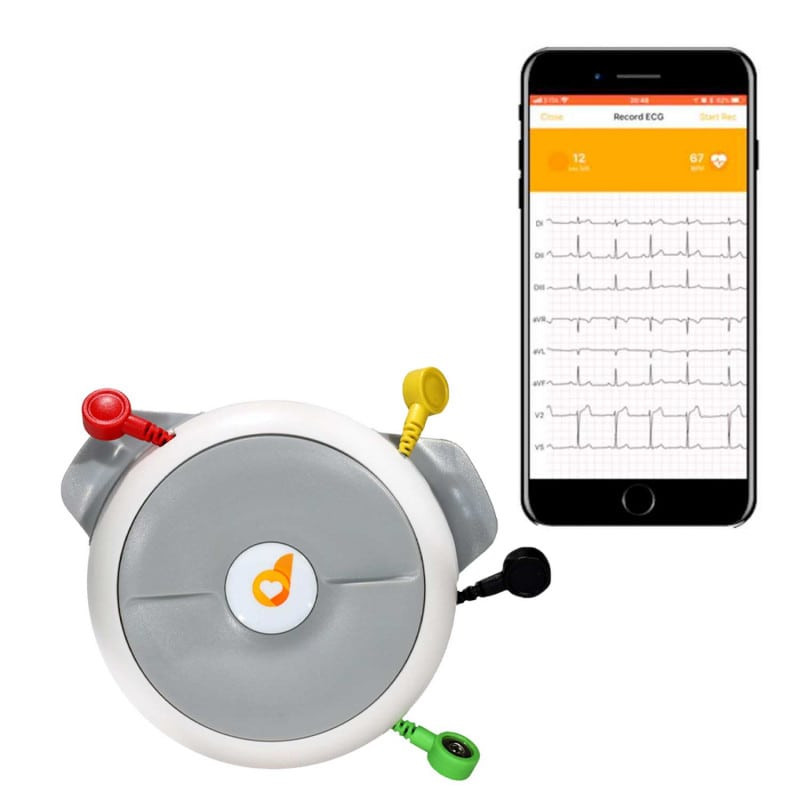

• Bluetooth streaming in real time
• Free app for recording ECG leads
• Results can be sent to a doctor

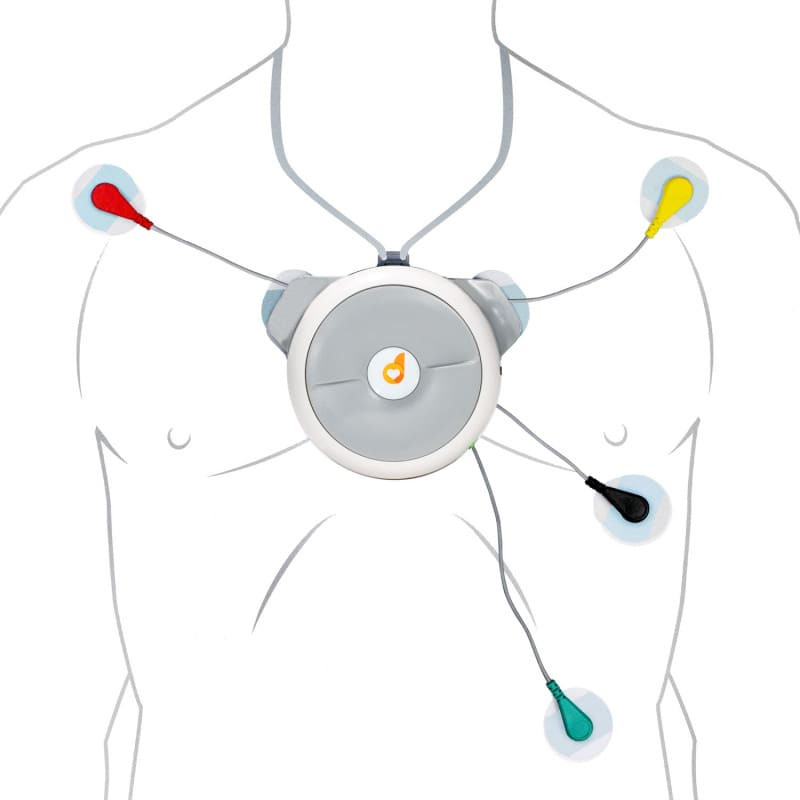

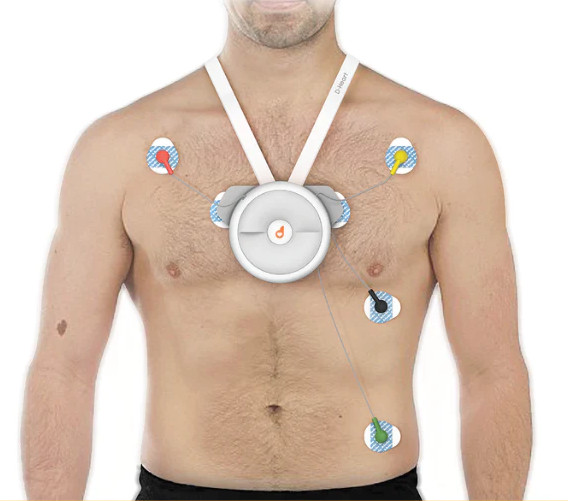

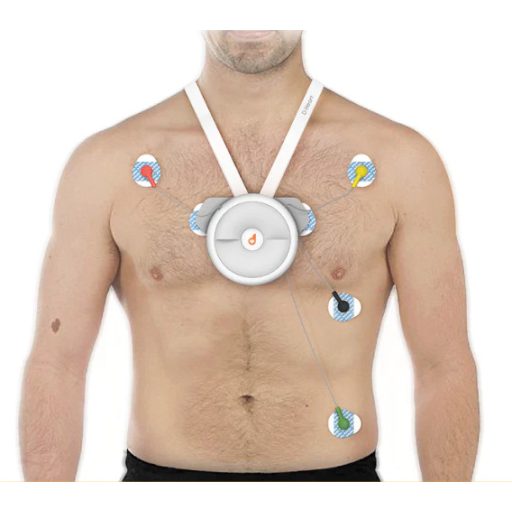

• Imitation image shows the correct placement of the electrodes
• Automatic wireless charging in the storage box
• Made in Italy

Technical Details

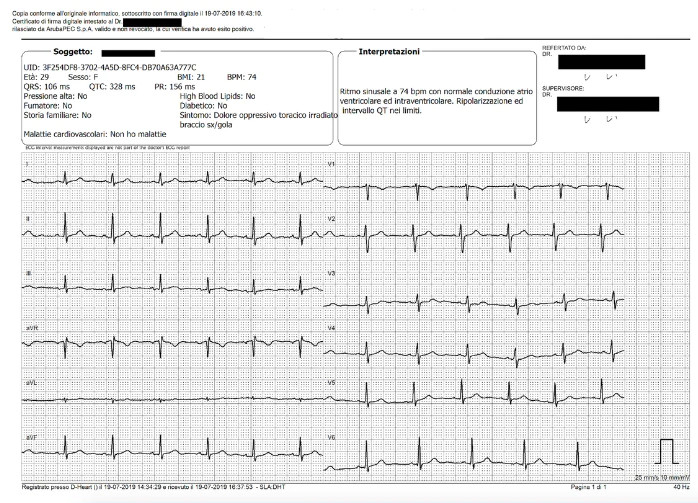

• 8- and 12-lead ECG
• Power: 1 lithium polymer battery
• Operating time: 24 hours in continuous operation
• Recording time: 12 to 60 seconds
• Charging time: 2 hours
• Horizontal resolution: 6.25 ms
• Vertical resolution: 0.0068 mV
• Sampling frequency: 640 Hz
• Screen intervals: 4 intervals of 160 Hz
• Dimensions ECG device : 117 x 133 x 44 mm
• Dimensions electrodes: 31 x 43 mm
• Weight: 196 g

Applications

• Preliminary examination of cardiac symptoms
• 12-lead control ECG
• Easy performance of ECGs during house calls

Delivery Contents

• D-Heart portable ECG device
• 60 x adhesive electrodes

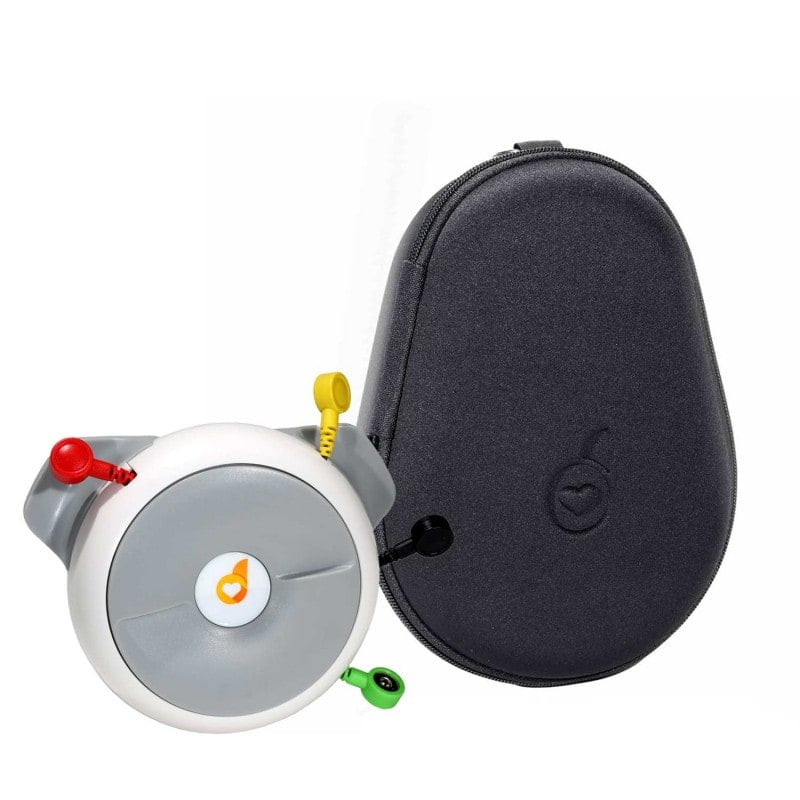

• Storage box
