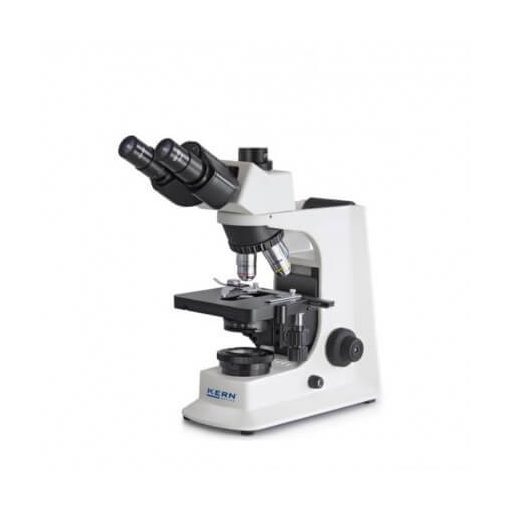

The KERN OBL 137 trinocular transmitted light microscope is suitable for laboratory applications and training. It features high-quality optics with Infinity objective lenses. The Infinity E-Plan ground-glass objective lenses can focus sharply at infinity.
Product details
- Transmitted light microscope for transparent specimens
- Trinocular design with connecting tube for camera
- Application in hematology, urology, gynecology, dermatology, pathology, microbiology and parasitology, immunology, oncology, entomology, veterinary, sewage treatment plants, water analysis
- 4-position nosepiece
- Large mechanical stage for 2 slides
- Dimensions: W 394 × D 185 × H 377 mm
- Weight: 6.188 kg
Technical details
- Microscope OBL 137
- Objective lenses: Infinity E-Plan (infinity corrected)
- Optical system: Abbe condenser 1.25 pre-centered (with aperture diaphragm and field diaphragm)
- Illumination: 3 W LED
- Siedentopf: 30° inclined, 360° rotatable
- Eyepieces: High-widefield, 10x magnification, Ø 20 mm
- Dioptric compensation: one-sided
- Color filter: blue (built-in)
Objective lenses:
- 4 x / 0.10 / working distance 12.1 mm
- 10 x / 0.25 / working distance 2.1 mm
- 40 x / 0.65 (spring loaded) / working distance 0.58 mm
- 100 x / 1.25 (oil) (spring loaded) / working distance 0.19 mm
Scope of delivery
- 1 KERN OBL 137 microscope
- 1 power supply unit
- 2 eyecups
- 1 dust cover
