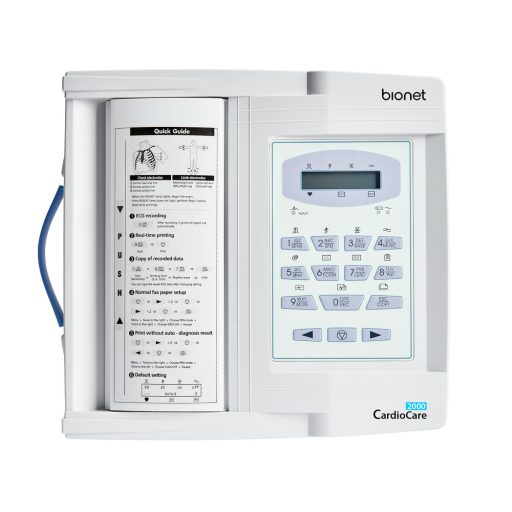

CardioCare 2000 acquires 10 full seconds of ECG data simultaneously from 10 leads to produce an accurate 12 channel printout with analysis.
Features:
- Simple and fast acquisition interface
- Enhanced sampling rate for data accuracy - Supports 8,000Hz per second sampling rate for 12CH ECG data accuracy with advanced and accurate ECG interpretation algorithm
- BMS Plus Patient data management in mind
- ECG leads: Simultaneous 12 Leads Resting ECG
- Dimensions: 300(W) x 290(H) x 95(H)mm, Approx. 3.0kg (main body)
- Battery type: Replaceable ans Rechargeable, Lithium ion, 11,1V, 2600mA
- Communication: LAN
- Safety conformity: Class I, Type CF defibrillation-proof applied part
Environmental Operation:
- Ambient Temperature: 10 to 40°C
- Relative Humidity: 30 to 85%RH
- Atmospheric Pressure: 70 to 106KPa
Display:
- 2 x 16 LCD Display
- Gain, speed, filter status, HR, Printing Form, Rhythm Lead
BMS plus offers caregivers the workflow flexibility for:
- Data preview
- Device remote control
- File conversion to PDF, XML, JPG, BMP, MFER, DICOM for data transfer through PACS
- Direct print-out, magnifying and comparing ECG trace, measuring ECG complex, adding comments
Line power:
- Input: 100 - 240Vac, 1.5-0.75A, 50-60Hz,
- Output: 15Vdc, 4.2A
Standard Accessory: Patient cable(1 EA), Limbs electrodes(1 SET), Chest electrodes(1 SET), ECG paper(1 EA), Power cord(1 EA)
