To monitor oxygen saturation during ergometry, the ergometer can be equipped with a module for S p O 2 measurement.
Comfortable stand-alone operation with freely definable ergometry programs is also possible, as is universal connection to ECG recorders or PC ECGs. The digital interfaces (RS-232, USB) are galvanically isolated - all connections are protected underneath the ergometer.
The ergometer cover is also optionally available in other colors to match the respective practice facility.
The stable mechanical construction guarantees maximum safety and long, trouble-free operation even under long-term use and high loads.
Options
- Automatic blood pressure measurement
- Extended control unit type “K”
- Analog/RS232 interface
- Automatic measurement of oxygen saturation (only for operating unit “K”)
Accessories on request
- Horizontal saddle adjustment
- Adjustable pedal cranks
- Bracing saddle
- Quick release adapter for standard saddle
- Triathlon handlebars
- Heart rate chest strap
- Children's saddle
- Anti-tip device (plate or clamp)
- Cuff (Child, Standard, Large)

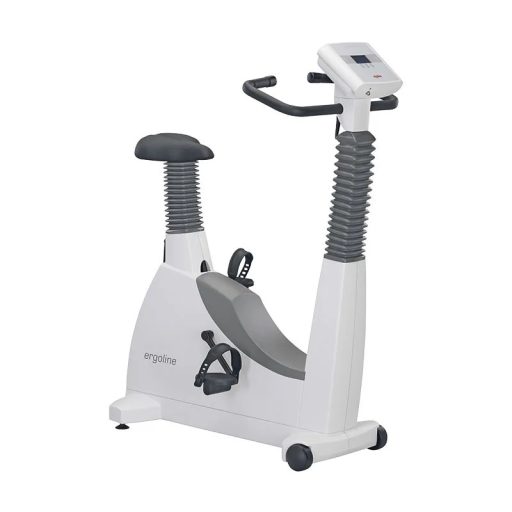

Ergometer
- Load: 6-999 watts, independent of speed
- Speed range: 30-130 rpm
- Braking system: Computer controlled eddy current brake
- Handlebar adjustment: tilt 360°
- Seat height adjustment: continuously mechanical
- Accuracy according to DIN VDE 0750-238
Ergometry programs
- 10 freely programmable ergometry programs
- 5 fixed level programs (WHO, Hollmann etc.)
- Manual load setting
Control unit
- Operation via membrane keyboard
- Display numerical values: load, speed, heart rate, ergometry time (optional: blood pressure)
Interfaces
- RS-232
- USB
- Optional: target load (analog), remote start
Miscellaneous
- Dimensions (L×W×H): approx. 90 × 46 × 133 cm
- Weight: approx. 54 kg
- Patient height: approx. 120-210 cm
- Patient weight: max. 160 kg
