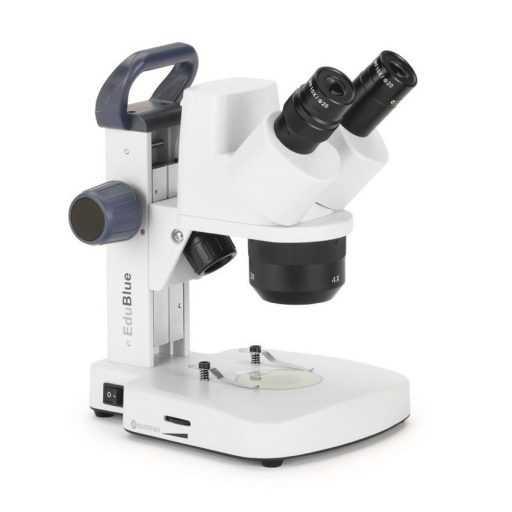

- Head unit: 45° tilted 360° rotatable binocular
- Built-in 3.2 Mpixel USB camera with management software
- Eyepieces: WF 10x/20mm
- Diopter adjustment: ±5D, on the left eyepiece
- Eye relief adjustment: 55mm-75mm
- Convertible lenses: 1x, 2x, 4x
- Full magnification: 10x, 20x and 40x
- Focusing system: uniaxial coarse adjustment
- Field of view: 20mm, 10mm, 5mm
- Working distance: 60mm
- Illumination: 1W LED with adjustable high brightness, through and over, adjustable
- Light sources can be operated separately or together
- Built-in 1800mAh rechargeable battery
- Accessories included: Image Focus 4 image management software and camera driver installation CD, USB cable, user manual, object scanning clips
- Dimensions: height: 258 mm, width: 175 mm, depth: 220 mm
- Weight: 2.4 Kg
Image Focus 4 software features:
- Saves images in selectable resolutions
- Image files supported: bmp, tif, jpeg, raw
- Video recording
Setting options:
- File saving location.
- Specify file sequence names
- White balance auto/manual adjustment
- Gain (digital gain) setting
- Adjust gamma, contrast and saturation
- Adjust colour temperature
- Noise filter function
- Digital image sharpening function
- Colouring of monochromatic fluorescent images
- Saving parameters for multiple users
- Post-processing of images
- HDR function
Measurement toolbar:
- Distance, perimeter, area, circle, irregular line
- Perpendicular adjustment, parallel adjustment
- Center circle
- Two- and three-point circle acquisition
- Measure angles, mark points
- Inserting a text box
