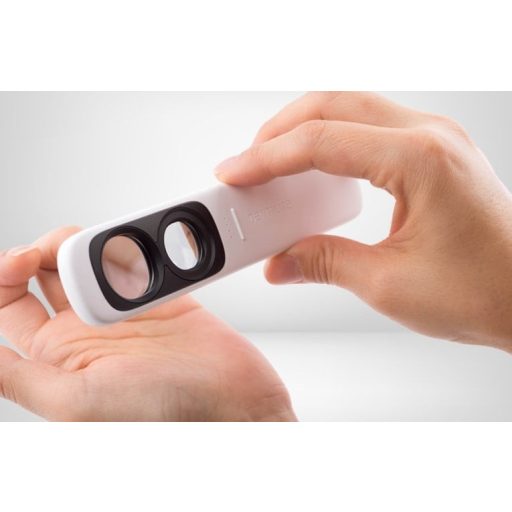

Unlike common dermatoscopes, the DermLite GL from 3Gen is equipped with two lenses instead of only one. Both lenses differ in their magnification and function. While the front, somewhat larger lens features 1.4x magnification, the back, somewhat smaller lens features 6x magnification.
The lens with the lower magnification is especially suited for general, slightly magnified skin exams, while the lens with the stronger magnification is suited for dermoscopy under polarised light or with the help of an immersion liquid. This allows the dermatologist to professionally examine skin changes as well as the surrounding areas without changing the instrument.
The DermLite GL is only 0.7 cm thick and 16 cm long. The light weight ensures that the dermatoscope sits well in the user's hand and that it is not too heavy when attached to a smartphone. The compact dimensions and the light weight also make the DermLite GL great for user's with smaller hands.
Included with the DermLite GL is a transparent protective cap made of sturdy plastic which is simply slid over each lens when the dermatoscope is not in use. This guards the lenses from contamination and scratches. Furthermore, the protective cap features a clip that is used to attach the DermLite GL to clothing (e.g. in a shirt pocket). The protective cap simultaneously covers the power button on the side of the instrument to prevent you from accidentally turning on the dermatoscope in your pocket. This saves the battery and prevents unnecessary loss of LED longevity.
The DermLite GL is intuitively operated, as it only has a single multifunctional button on the side. By pressing the button, the device turns on and activates the 4 LEDs for the front lens. In this mode, the DermLite GL can be used for general orientation exams. By pressing the multifunctional button again, the 4 LEDs on the back lens turn on. By holding the button for multiple seconds, the device turns off completely.
Product Details for the DermLite GL:
Smartphone-compatible dermatoscope
Can be used for dermoscopy and for general examinations
With polarised light for vascular and pigmented structures
Single-hand operation via multifunctional button
For observing skin lesions under magnification and illumination
Also suited for dermoscopy with immersion liquid
Compatible with the DermLite MagnetiConnect smartphone adapter
Transparent protective cap with pocket clip for attaching to clothing
Housing colour: white
Technical Details for the DermLite GL
2 lenses with 1.4x and 6.0x magnification
6 extra bright, polarised LEDs in two groups (switchable)
Extra flat design (only 0.7 mm thick)
With Lithium-ion battery (rechargeable)
Approx. 2 hours of continuous use with fully-charged battery
Automatically turns off after 3 minutes
With 4-stage battery charge level display
5 year manufacturer warranty
The DermLite GL dermatoscope can be connected with virtually all smartphones and used for documentation of the exam. There are two different smartphone adapters available for this purpose.
