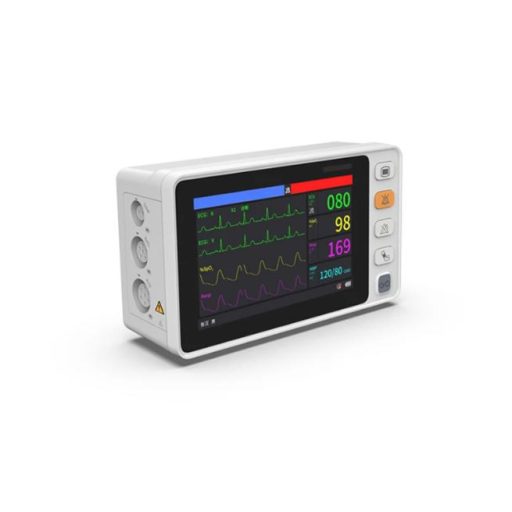

This patient monitor is designed for adult, paediatric and neonatal patients.
It is powered by 100 V-240 V ～ 50 Hz/60 Hz. Users may select different parameter configurations according to requirements. It displays real-time data and waveform by 5'' color TFT LCD. It can be connected to Central Monitoring System via wireless network to form a network monitoring system.
It can monitor such parameters as ECG, RESP, SpO2, PR, NIBP, TEMP and CO2 (optional).
Function
Parameters: ECG, RESP, SpO2, PR, NIBP, TEMP, CO2 (optional)
1) ECG - Heart rate (HR)
ECG waveform
2) RESP - Respiration rate (RR)
Respiration waveform
3) SpO2 - Oxygen saturation (SpO2)
Plethysmogram (PLETH) waveform
Pulse rate (PR)
Bar graph
4) NIBP - Systolic pressure (SYS), Diastolic pressure (DIA), Mean pressure (MEAN)
5) TEMP
6) CO2 (optional) EtCO2, INSCO2, AWRR
It has several functions, such as audible and visual alarm, trend data storage and output, NIBP measurement, alarm event marking and drug concentration calculation.
Features
1) 5'' color TFT LCD, multi-language interface (simplified Chinese, English, Russian, Kazakh, Slovak, Czech, Spanish, etc.).
2) Quiet, energy-saving and clean, reduced possibility of cross-infection.
3) With standard interface, OxyCRG, big character interface and full-lead interface, convenient to observe.
4) Waveform, parameter color and location can be set optionally.
5) All operations can be completed by the buttons and touch screen.
6) Adopt digital SpO2 technology, anti-motion and anti-ambient light interference, and measurement can be performed under the circumstance of low perfusion.
7) NIBP measurement mode: Manual / AUTO / STAT, storage for 2400-group NIBP data.
8) Connect to Central Monitoring System by WiFi.
9) Built-in large-capacity battery, meets the requirements of long-term operation. AC/DC, achieves uninterrupted monitoring.
10) Anti-high frequency surgical unit, defibrillation-proof (special leads are necessary).
Performance
▲ECG
- Lead mode:
3-lead: I, II, III
5-lead: I, II, III, aVR, aVL, aVF, V
- Waveform:
3-lead, 1 channel
5-lead, 2-channel
Gain: 2.5 mm/mV, 5.0 mm/mV, 10 mm/mV, 20 mm/mV
Scan speed: 12.5 mm/s, 25 mm/s, 50 mm/s
HR
Measurement and alarm range:
Adult: 15 ~ 300 bpm
Pediatric/neonate: 15 ~ 350 bpm
Accuracy: ± 1 % or ± 1 bpm, whichever is greater
Resolution: 1 bpm
- RESP
Method: R-F (RA-LL) impedance
Respiration rate:
Measurement and alarm range: 0 ~ 150 rpm
Resolution: 1 rpm
Accuracy:
7 rpm ~ 150 rpm, ± 2 rpm or ± 2 %, whichever is greater;
0 rpm ~ 6 rpm, unspecified
Apnea alarm: 10 ~ 40 s
Scan speed: 12.5 mm/s, 25 mm/s
- NIBP
Measurement mode: Oscillometry
Working mode: Manual / AUTO / STAT
Measurement interval in AUTO mode: 1 / 2 /3 / 4 / 5/ 10 / 15 / 30 / 60 / 90 / 120 / 180 / 240 / 480 minutes
Measurement period in STAT mode: 5 minutes
Measurement and alarm range: 0 ~ 300 mmHg
Resolution: 1 mmHg
Cuff pressure accuracy: ± 3 mmHg
- Measurement accuracy:
Maximal mean deviation: ± 5 mmHg
Maximal standard deviation: 8 mmHg
- Over-pressure protection:
Adult: 297±3 mmHg
Pediatric: 260±3 mmHg
Neonate: 147±3 mmHg
- SpO2
Measurement and alarm range: 0 ~ 100%
Resolution: 1 %
Accuracy: 70 % ~ 100 %: ± 2 %;
0 % ~ 69 %: unspecified
- PR
Measurement and alarm range: 25 ~ 250 bpm
Accuracy: ± 2 bpm or ± 2 %, whichever is greater
- TEMP
Measurement and alarm range: 0 ~ 50 ℃
Resolution: 0.1 ℃
Accuracy: ± 0.1 ℃
- CO2(optional)
Measurement mode: mainstream or sidestream
Measurement range: 0 ~ 150 mmHg
- Resolution:
0.1 mmHg: 0 ~ 69 mmHg
0.25 mmHg: 70 ~ 150 mmHg
- Accuracy:
0 ~ 40 mmHg: ±2 mmHg
41 ~ 70 mmHg: ±5 %
71 ~ 100 mmHg: ±8 %
101 ~ 150 mmHg: ±10 %
- AwRR measurement range:
Sidestream: 2 ~ 120 rpm
Mainstream: 2 ~ 150 rpm
Accuracy: ±1 rpm
Apnea alarm: yes
- Power supply: 100 V-240 V ～ 50 Hz/60 Hz
- Safety class: Class II
Accessories
1)Adult fingertip SpO2 probe
2)Adult NIBP cuff
3)NIBP extension tube
4)ECG lead cable
5)ECG electrode
6)TEMP probe
7)Power cord
8)User Manual
