Functions:
Double head (128 array elements /32 channels):
(1)3.5MHz R60 convex probe; Broadband, 2.0MHz-5.0MHz frequency conversion
(2)7.5MHz L40 linear probe; Broadband, 5.0MHz-10.0MHz frequency conversion
Charging mode: wireless.
The effective transmission distance of WiFi connection (between the main unit and the particular control software) is not less than 10 m (in an open area).
Support full-screen display.
Image flip function.
8-segment TGC adjustment.
Many parameters are adjustable.
With patient management system.
Cine-loop function
Storage function of DICOM file
Working mode: B, B/M, C, PW
With the measurement functions and software package that can meet the requirements of clinical diagnosis.
3 Performance
Maximum scanning depth: 305mm
Cine-loop storage: 1000 frame
Measurement items: length, circumference, area, depth, heart rate, duration, distance, speed, S/D ratio, obstetric measurement package.
Performance:
SpO2 measurement range: 0%~100%
Accuracy: 70%~100%: ±2%
0%~69%: unspecified
PR measurement range: 30bpm~250bpm
Accuracy: ±2bpm or ±2%, whichever is greater.
Resolution:
SpO2: 1%
PR: 1bpm
Measurement Performance in Weak Filling Condition: SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2%, whichever is greater.
Resistance to surrounding light: The deviation between the value measured in the condition
of man-made light or indoor natural light and that of darkroom is less than ±1%.
Working current: ≤30mA
Power supply: two “AAA” batteries
Safety classification: type BF applied part
Safety
Type of protection against electric shock: internally powered equipment
Degree of protection against electric shock: type BF applied part
4 Accessories
Particular APP
One User Manual
One wireless charging base
One quick charger
One data line
5 Physical characteristic
Dimension: 161 mm (L) × 73 mm (W) × 30 mm (H)
Weight: less than 1 kg
Characteristics:

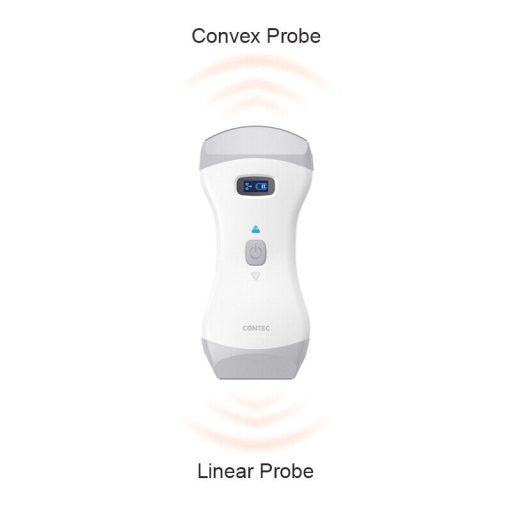

Integrated convex array and linear array probe.
Optional multiple working modes, such as B, CDFI, M, PW, guided puncture, etc. Real-time clear image display.
Support ultrasound examination of abdomen, obstetrics, gynecology, urinary system, blood vessels, musculoskeletal, small organ and heart, etc. With the measurement functions and software package that can meet the requirements of clinical diagnosis.
Powerful image processing capability, unique image optimization function.
The image and video can be annotated and saved, DICOM file can be stored, with cine-loop function.
With the patient management system, the patient information can be created / edited.
Built-in lithium battery, support wireless charging.
Support multiple display terminals, such as Android / iOS phone or tablet.
Connect with the display terminal by WiFi, more freely to use.
The effective transmission distance of WiFi connection is not less than 10 m (in an open area).
Waterproof design, convenient to disinfect.
